grasshopper

6144 Deck

Year Model:1987

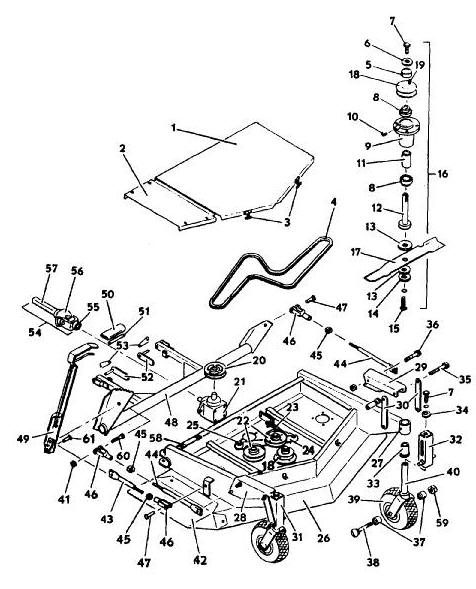

Mower Assembly




Click On The Part Number For Details

Item #

Description

Part Number

1 SHIELD ASSY - 44 DECK 603771
2 SHIELD - BELT RT 44 722270
3 LATCH RUBBER DRAW 281301
4 BELT 383000
5 SPACER 282630
6 WASHER - CUPPED 257041
7 HEX BOLT 243331
8 BEARING - BALL W/O FL SEAL 120081
9 SPINDLE HOUSING GREASE 320526
10 FITTING GREASE 280734
11 SPACER - BEARING TUBE 903640
12 SPINLDE - BLADE STD 603775
13 WASHER - FIBER 421200
14 WASHER 257061
15 HEX BOLT 243581
16 BLADE SPINDLE ASSY (includes items 6-15) 623785
17 BLADE -15 HI-LIFT NOTCH 320234
- BLADE -15 MED LIFT 320231
18 SHEAVE 415826
19 KEY SQUARE 281580
20 SHEAVE 415875
21 GEARBOX RT ANGLE CW 390020
- GEARBOX RT ANGLE CCW 390021
22 IDLER 393225
23 TENSIONED ASSY - 9 INCH 603745
- SPRING - COMPRESSION 283322
- HEX BOLT 243290
- YOKE CLEVIS 265537
- MOUNT - SPRING 643574
- CLEVIS PIN 261284
24 ARM - IDLER W/BRG 44 603070
  NYLON BEARING 422585
25 BOLT SHOULDER 259745
26 DECK - 44 MOWER W/LIFT 643261
27 FITTING GREASE 280777
28 LIFT CHANNEL - RT 643532
29 LIFT CHANNEL - LT 643533
30 STRAP - LINKAGE 782888
31 FORK HOUSING ASSY RT 603420
32 FORK HOUSING ASSY LT 603421
  BEARING - REAMED OILITE 833255
33 BUSHING - FLANGED SINTERED 866260
34 WASHER 774020
35 HEX BOLT 243610
36 HEX BOLT 243600
37 SPACER - AXLE 902415
38 CARRIAGE BOLT 247715
39 WHEEL ASSY - 4 SEMI-PNEU 603971
  BEARING - BALL 120050
  SPACER - DECK WHEEL BRG 902473
40 FORK - DECK LIFT 643361
41 NUT LOCK 253930
42 SHIELD - DISCHARGE 44 722325
43 LINKAGE - LIFT LEVER 603562
44 ROD ASSY - 44 LIFT DECK 326020
45 NUT 254470
46 YOKE CLEVIS 265555
47 CLEVIS PIN 261426
48 LIFT ARM - 44 MOWER 643525
49 LEVER - DECK LIFT 643529
50 GRIP HANDLE 422155
51 GRIP HANDLE 422158
52 PIN - ATTACHING 643625
53 SAFETY PIN 261848
54 UN HALF SHAFT 398515
55 YOKE 401010
56 CROSS & BEARING 121010
57 YOKE & SHAFT 402605
58 NUT 254431
59 NUT LOCK 253970
60 HEX BOLT 243580
61 CLEVIS PIN 261346
62 KEY WOODRUFF 281828
63 KEY WOODRUFF 281833
64 COTTER PIN 260652
65 COTTER PIN 260628
