grasshopper

720K
20HP Kohler

Year Model: 1994

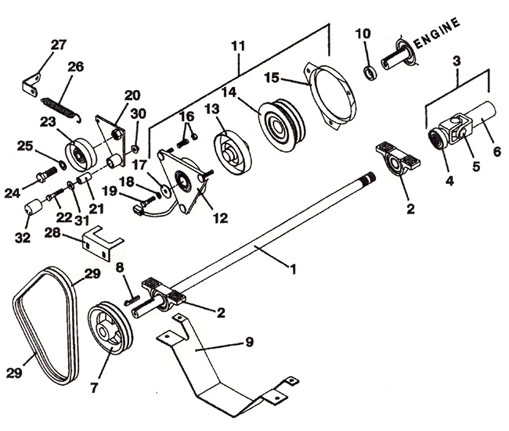

PTO Shaft & Clutch Assembly

PTO Shaft & Clutch Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Splined Power Shaft

393759

2

Pillowblock Bearing

122044

3

Sleeve Sect. Q.D. Drive Shaft

398914

4

Yoke Splined Quick Disconnect

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401015

7

Sheave

415650

8

Gib Key

281588

9

Guard

725256

10

Spacer

902587

11

Clutch Assembly

604182

12

Field Assembly

388854

13

Rotor Assembly

388855

14

Armature w/Pulley

388792

15

Brake Drum

388793

16

Spring/Nut Assembly

388791

17

Washer

883803

18

Lock Washer

257422

19

Bolt

243456

20

Idler Arm (Includes Bearings & Item21)

824177

-

Oilite Bearing

121758

21

 Pivot Shaft Bearing

881105

22

Bolt

243355

23

Idler

393175

24

Bolt

243805

25

Lock Washer

257452

26

Spring Extension w/Swivel

283820

27

Idler Spring Bracket

732539

28

Bracket

729118

29

Drive Belt (2 Required)

381914

30

Nut

253043

31

Washer

257040

32

Vinyl Cap

422098
