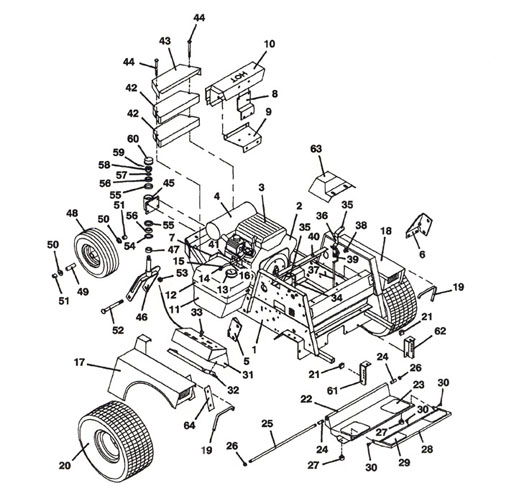

Item # |
Description |
Part Number |
1 |
Tractor Frame |
643378 |
2 |
Engine - 20HP Kohler |
100161 |
3 |
Air Filter |
100928 |
- |
Air Filter Pre Cleaner |
100929 |
4 |
Muffler |
101217 |
- |
Exhaust Gasket - Muffler |
101041 |
5 |
Gusset - ROPS - Right |
726131 |
6 |
Gusset - ROPS - Left |
726132 |
7 |
Heat Shield |
721123 |
8 |
Bracket |
643117 |
9 |
Lower Muffler Bracket |
729270 |
10 |
Shield - Kohler Muffler |
722391 |
- |
Inner Panel |
722309 |
11 |
Fuel Tank w/Draw Tube |
603813 |
12 |
Fuel Tank Mounting Bracket |
643144 |
13 |
Fuel Cap w/Level |
141125 |
14 |
Fuel Draw Tube |
101819 |
15 |
Clamp |
280260 |
16 |
Fuel Hose |
821710 |
- |
Fuel Filter |
101001 |
17 |
Fender - Right w/Console |
643959 |
18 |
Fender - Left |
643963 |
19 |
Trim |
822635 |
20 |
Wheel & Tire - Turf - 20 x 10 x 8 |
483921 |
- |
Wheel - 8 x 6 |
483410 |
- |
Tire - Turf - 20 x 10 x 8 |
482471 |
- |
Wheel & Tire - Bar Tread - Right - 21 x 11 x 8 |
483930 |
- |
Wheel & Tire - Bar Tread - Left - 21 x 11 x 8 |
483931 |
- |
Wheel - 8 x 9.125 |
483415 |
- |
Tire - Bar Tread - 21 x 11 x 8 |
482480 |
21 |
Plug |
422065 |
22 |
Foot Platform Assembly |
603343 |
23 |
Tread |
420905 |
24 |
Nylon Bearing |
422615 |
25 |
Pivot Rod |
780673 |
26 |
Nut |
253470 |
27 |
Rubber Bumper |
424052 |
28 |
Extension - Foot Platform |
603301 |
29 |
Tread |
420904 |
30 |
Carriage Bolt |
247130 |
31 |
Console w/Decals |
693101 |
32 |
Filler Panel |
721136 |
33 |
Mechanical Choke |
142233 |
34 |
Throttle Assembly |
603821 |
- |
Cable Control Assembly |
323655 |
- |
Throttle Lever Stop |
722009 |
35 |
Handle Grip |
422150 |
36 |
Brake Lever |
729046 |
- |
Spacer |
423705 |
37 |
Brake Linkage Rod |
730361 |
38 |
Spacer |
902280 |
- |
Bolt |
243330 |
- |
Washer |
257040 |
39 |
Cotter Pin |
260648 |
40 |
Rubber Bumper |
424015 |
41 |
Oil Filter |
100802 |
42 |
Counterweight - 34 lbs. |
323933 |
43 |
Cover Plate |
729514 |
44 |
Carriage Bolt |
247325 |
45 |
Pivot Housing Assembly |
604596 |
46 |
Fork & Nut Assembly |
604364 |
47 |
Spacer |
282615 |
48 |
Wheel & Tire Assembly w/Brgs & Spacer -
13 x 5 x 6 |
483861 |
- |
Tire - 13 x 5 x 6 |
482350 |
- |
Wheel w/Bearing & Spacer - 6 x 3.25 |
483301 |
49 |
Spacer |
902475 |
50 |
Bearing |
120050 |
51 |
Spacer |
902425 |
52 |
Carriage Bolt |
247725 |
53 |
Lock Nut |
253970 |
54 |
Seal |
125855 |
55 |
Bearing Cup |
123522 |
56 |
Bearing |
122522 |
57 |
Washer |
257091 |
58 |
Nut |
254502 |
59 |
Cotter Pin |
260668 |
60 |
Dust Cap |
481432 |
61 |
Attachment Mount - Right |
643138 |
62 |
Attachment Mount - Left |
643139 |
63 |
Shield |
644746 |
64 |
Cover Panel |
722062 |
- |
Decal Set - 720K |
603274 |
