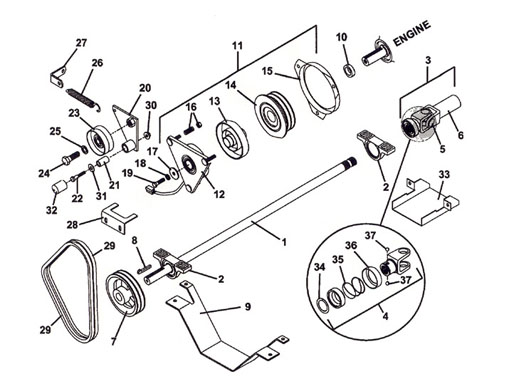

Item # |
Description |
Part Number |
1 |
Splined Power Shaft |
393759 |
2 |
Pillowblock Bearing |
122044 |
3 |
Sleeve Sect. Q.D. Drive Shaft |
398914 |
4 |
Yoke Splined Quick Disconnect |
401019 |
5 |
Cross & Bearing |
121010 |
6 |
Yoke w/Sleeve |
401015 |
7 |
Sheave |
415650 |
8 |
Gib Key |
281588 |
9 |
Bolt |
253194 |
10 |
Spacer |
902587 |
11 |
Clutch Assembly |
604182 |
12 |
Field Assembly |
388854 |
13 |
Rotor Assembly |
388855 |
14 |
Armature w/Pulley |
388792 |
15 |
Brake Drum |
388793 |
16 |
Spring/Nut Assembly |
388791 |
17 |
Washer |
883803 |
18 |
Lock Washer |
257422 |
19 |
Bolt |
243456 |
20 |
Idler Arm (Includes Bearings & Item21) |
824177 |
- |
Oilite Bearing |
121758 |
21 |
Pivot Shaft Bearing |
881105 |
22 |
Bolt |
243355 |
23 |
Idler |
393175 |
24 |
Bolt |
243805 |
25 |
Lock Washer |
257452 |
26 |
Spring Extension w/Swivel |
283820 |
27 |
Idler Spring Bracket |
732539 |
28 |
Bracket |
729119 |
29 |
Drive Belt (2 Required) |
381914 |
30 |
Nut |
253043 |
31 |
Washer |
257040 |
32 |
Vinyl Cap |
422098 |
33 |
Shield |
729287 |
34 |
External Retainer |
263660 |
35 |
Compression Spring |
283525 |
36 |
Spring Cover |
422980 |
37 |
Steel Ball |
300014 |
