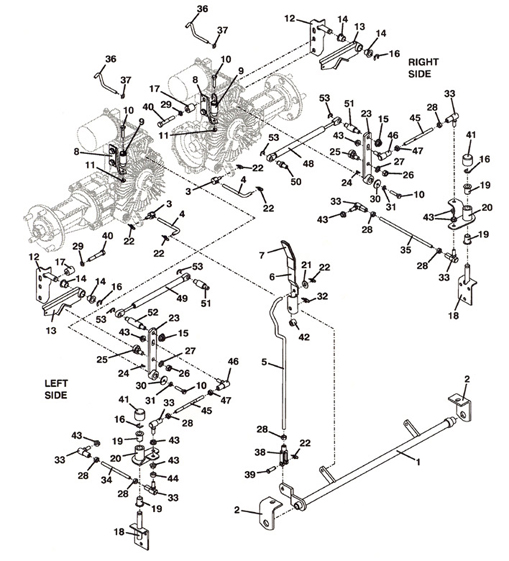

Item # |
Description |
Part Number |
1 |
Brake Pivot |
643955 |
2 |
Brake Pivot Mount Bracket |
732610 |
3 |
Brake Linkage Pin |
880924 |
4 |
Brake Linkage Rod |
730256 |
5 |
Brake Rod |
730361 |
6 |
Brake Lever |
729046 |
7 |
Handle Grip |
422150 |
8 |
Neutral Return Spring Bracket |
729072 |
9 |
Extension Spring |
283823 |
10 |
Bolt |
243030 |
11 |
Nut |
253025 |
12 |
Mount |
643603 |
13 |
Neutral Return Arm w/Bearing |
603084 |
14 |
Bearing Sleeve |
422556 |
15 |
Nut |
253043 |
16 |
External Retainer |
263500 |
17 |
Spacer |
902307 |
18 |
Pivot |
643627 |
19 |
Bearing Sleeve |
422559 |
20 |
Pivot Linkage w/Bearing |
603567 |
21 |
Washer |
257030 |
22 |
Cotter Ring |
260624 |
23 |
Arm |
643059 |
24 |
Woodruff Key |
281823 |
25 |
Roller Assembly - Eccentric |
603726 |
26 |
Nut |
254450 |
27 |
Washer |
257410 |
28 |
Nut |
254441 |
29 |
Lock Washer |
257402 |
30 |
Washer |
774012 |
31 |
Lock Washer |
257392 |
32 |
Cotter Ring |
260648 |
33 |
Ball Joint |
265615 |
34 |
Rod |
780160 |
35 |
Rod |
780165 |
36 |
Dump Valve Lever |
730088 |
37 |
Push On Retainer |
262934 |
38 |
Clevis Yoke |
265537 |
39 |
Clevis Pin |
261284 |
40 |
Bolt |
243225 |
41 |
Vinyl Cap |
422096 |
42 |
Spacer |
423705 |
43 |
Nut |
253038 |
44 |
Spacer |
902297 |
45 |
Rod |
780161 |
46 |
Ball Joint |
265616 |
47 |
Nut |
254444 |
48 |
Damper - Right |
285025 |
49 |
Damper - Left |
285030 |
50 |
Pin |
881103 |
51 |
Pin |
881110 |
52 |
Pin |
881121 |
53 |
External Retainer |
263490 |
