Item # |
Description |
Part Number |
- |

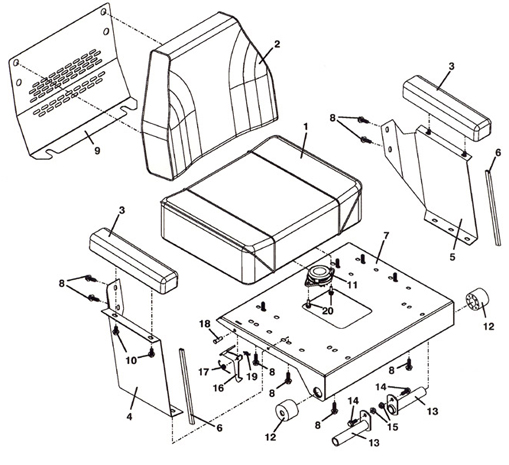

Seat Assembly (Includes 1-10) |
604741 |
1 |
Seat Cushion - Formed 14x18 |
321521 |
2 |
Back Cushion - 14x16 |
321520 |
3 |
Arm Rest |
321522 |
4 |
Side Member - Right |
724310 |
5 |
Side Member - Left |
724311 |
6 |
Seat Edge Trim |
822630 |
7 |
Seat Bottom |
643912 |
8 |
Whiz Bolt |
253193 |
9 |
Seat Panel |
722388 |
10 |
Whiz Bolt |
253191 |
11 |
Seat Switch |
183870 |
12 |
Seat Isolator |
424095 |
13 |
Seat Hinge Pin |
644618 |
14 |
Whiz Bolt |
253192 |
15 |
Whiz Nut |
253035 |
16 |
Seat Latch |
724112 |
17 |
Spring - Torsion |
284408 |
18 |
Clevis Pin |
261284 |
19 |
Cotter Ring |
260606 |
20 |
Whiz Bolt |
253175 |
