Item # |
Description |
Part Number |
- |

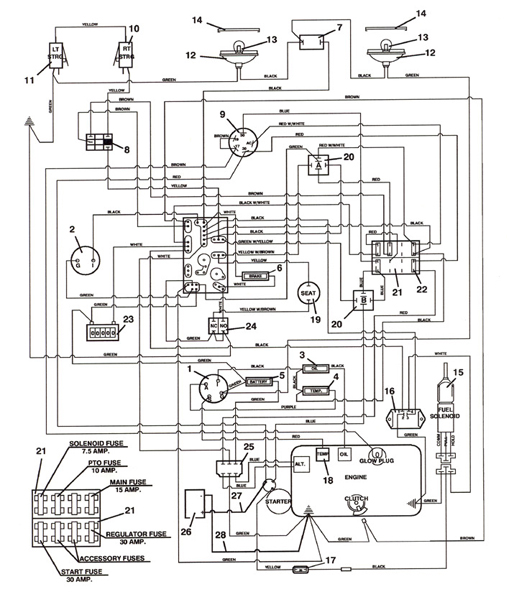

Wiring Assembly |
604974 |
- |
Decal - Console |
161131 |
1 |
Coolant Temperature Gauge |
141160 |
2 |
Voltmeter Gauge |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Light Switch |
184179 |
8 |
Clutch Switch |
183925 |
9 |
Ignition Switch |
183827 |
10 |
Safety Switch - Right Steering |
183860 |
- |
Right Steering Switch Mount |
720160 |
11 |
Safety Switch - Left Steering |
183860 |
- |
Left Steering Switch Mount |
720161 |
12 |
Worklight Assembly (Includes Item 13) |
182253 |
13 |
Light Bulb |
182005 |
14 |
Bezel |
182251 |
15 |
Fuel Solenoid |
603350 |
16 |
Module - Switch Interlock |
184220 |
17 |
Fuse Holder |
181735 |
- |
Fuse |
181470 |
18 |
Temperature Sender |
141222 |
19 |
Seat Safety Switch |
183870 |
20 |
Relay |
184272 |
21 |
Fuse Block |
181722 |
- |
1 Wire Clip |
184458 |
- |
2 Wire Clip |
184460 |
- |
Double Wire Clip |
184472 |
22 |
Fuse 30 Amp Auto |
181470 |
- |
Fuse 15 Amp Auto |
181465 |
- |
Fuse 10 Amp Auto |
181462 |
- |
Fuse 7.5 Amp Auto |
181460 |
23 |
Hour Meter |
141551 |
24 |
Brake Switch |
183894 |
25 |
Voltage Regulator |
185530 |
26 |
Battery |
- |
- |
Battery Box Assembly |
603104 |
- |
Battery Box Lid Assembly |
603570 |
- |
Battery Hold Down Strap |
603110 |
27 |
Battery Cable 11" |
180310 |
- |
Battery Terminal Boot |
425219 |
28 |
Ground Cable 16" |
180276 |
