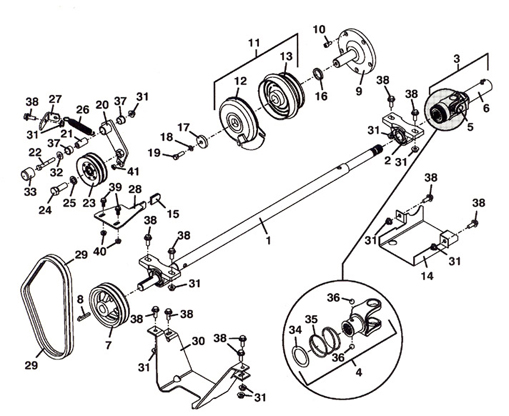

Item # |
Description |
Part Number |
1 |
Splined Power Shaft |
644725 |
2 |
Pillowblock Bearing |
122044 |
3 |
Sleeve Sect. Q.D. Drive Shaft |
398914 |
4 |
Yoke Splined Quick Disconnect |
401019 |
5 |
Cross & Bearing |
121010 |
6 |
Yoke w/Sleeve |
401017 |
7 |
Sheave |
415650 |
8 |
Gib Key |
281588 |
9 |
Clutch Stub Shaft |
824637 |
10 |
Socket Head Screw |
270075 |
11 |
Electric Clutch |
388769 |
12 |
Field Assembly w/Brake |
388872 |
13 |
Armature & Rotor Assembly |
388862 |
14 |
PTO Shaft Shield |
729287 |
15 |
Cover - Clutch Bracket |
422088 |
16 |
Spacer |
902583 |
17 |
Retaining Washer |
883803 |
18 |
Lock Washer |
257412 |
19 |
Bolt |
243337 |
20 |
Idler Arm (Includes Bearings & Item21) |
824499 |
21 |
Bearing Pivot Shaft |
881105 |
22 |
Bolt |
243355 |
23 |
Sheave |
415610 |
24 |
Bolt |
243805 |
25 |
Lock Washer |
257452 |
26 |
Spring Extension w/Swivel |
283820 |
27 |
Idler Spring Bracket |
732539 |
28 |
Clutch Anti Rotation Bracket |
725118 |
29 |
Drive Belt (2 Required) |
381914 |
30 |
Rear Sheave Guard |
725286 |
31 |
Whiz Nut |
253043 |
32 |
Flat Washer |
257040 |
33 |
Vinyl Cap |
422098 |
34 |
External Retainer |
263660 |
35 |
Compression Spring |
283525 |
36 |
Steel Ball |
300014 |
37 |
Oilite Bearing |
121756 |
38 |
Bolt |
253203 |
39 |
Bolt |
253192 |
40 |
Nut |
253035 |
41 |
Nylon Bearing |
422520 |
