grasshopper

721D
21HP Kubota Diesel

Year Model:2003

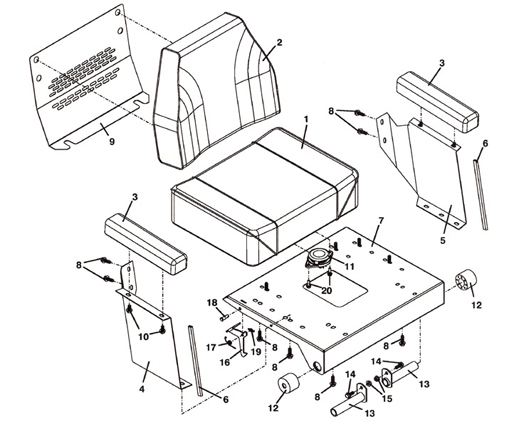

Seat Assembly

Seat Assembly


Click On The Part Number For Details

Item #

Description

Part Number

-

Seat Assembly (Includes 1-10)

604741

1

Seat Cushion - Formed 14x18

321521

2

Back Cushion - 14x16

321520

3

Arm Rest

321522

4

Side Member - Right

724310

5

Side Member - Left

724311

6

Seat Edge Trim

822630

7

Seat Bottom

643912

8

Whiz Bolt

253193

9

Seat Panel

722388

10

Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Spring - Torsion

284408

18

Clevis Pin

261284

19

Cotter Ring

260606

20

Whiz Bolt

253175
