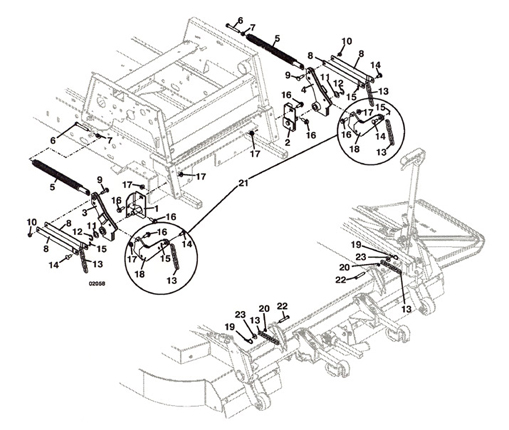

1

Lift Pivot - Right

644545

2

Lift Pivot - Left

644546

3

Rocker w/Bearing - Right

603701

-

Oilite Bearing

121764

4

Rocker w/Bearing - Left

603702

-

Oilite Bearing

121764

5

Spring & Plug Assembly

604762

6

Bolt

243395

7

Nut

254450

8

Lift Strap

732410

9

Carriage Bolt

247254

10

Lock Nut

253890

11

Washer

257092

12

External Retainer

263529

13

Lift Chain

820320

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Bolt

253203

17

Nut

253043

18

Extension

644706

19

Hair Pin

260523

20

Push On Retainer

262950

21

Rocker Arm Extension Kit

604708

22

Clevis Pin

261362

23

Washer

257040
