grasshopper

721D
21HP Kubota Diesel

Year Model:1992

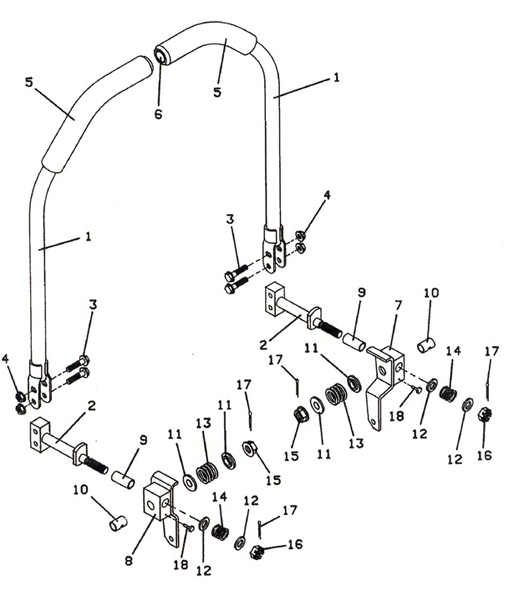

Steering Assembly

Steering Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Steering Lever Assembly

643497

2

Steering Lever Mount

603558

3

Hex Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip - Foam

422179

6

Vinyl Cap

422095

7

Steering Pivot - Right

643660

8

Steering Pivot - Left

643661

9

Nylon Bearing

422580

10

Nylon Bearing

422561

11

Washer

257067

12

Washer

257063

13

Compression Spring

283381

14

Compression Spring

283324

15

Nut

830355

16

Nut w/Nylon Insert

253470

17

Cotter Pin

260652

18

Plug

422055
