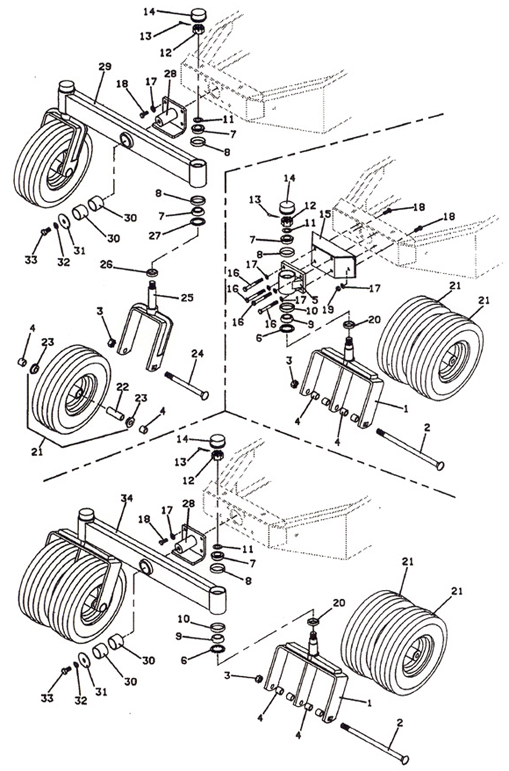

Item # |
Description |
Part Number |
1 |
Dual Fork With Nut |
604363 |
2 |
Bolt |
604153 |
3 |
Lock Nut |
253970 |
4 |
Axle Spacer |
902425 |
5 |
Pivot Housing - Rear Dual Fork |
604595 |
6 |
Seal |
125855 |
7 |
Tapered Bearing |
122522 |
8 |
Bearing Cup |
123522 |
9 |
Bearing Taper |
122523 |
10 |
Bearing Cup |
123521 |
11 |
Washer |
257091 |
12 |
Nut |
254502 |
13 |
Cotter Pin |
260668 |
14 |
Dust Cap |
481432 |
15 |
Pivot Mount Adapter |
643015 |
16 |
Bolt |
243375 |
17 |
Lock Washer |
257412 |
18 |
Bolt |
243330 |
19 |
Nut |
254450 |
20 |
Spacer |
830420 |
21 |
Wheel & Tire w/Bearings & Spacer 13 x 5 x 6 |
483861 |
22 |
Bearing Spacer |
902475 |
23 |
Wheel Bearing |
120050 |
24 |
Bolt |
247725 |
25 |
Rear Fork With Nut |
604364 |
26 |
Spacer |
282615 |
27 |
Seal |
125855 |
28 |
Rear Axle Pivot |
604597 |
29 |
Axle Beam w/Bushing |
824510 |
30 |
Oilite Bearing |
833275 |
31 |
Washer |
257061 |
32 |
Lock Washer |
257432 |
33 |
Bolt |
243560 |
34 |
Beam |
824508 |
