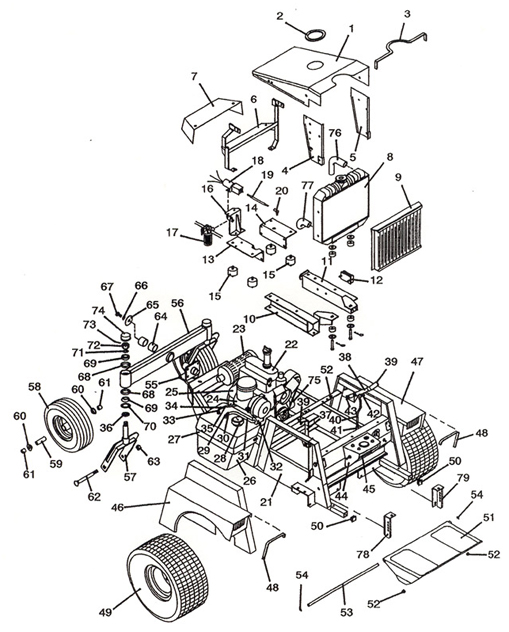

Item # |
Description |
Part Number |
1 |
Hood |
643409 |
2 |
Trim |
822633 |
3 |
Trim |
822650 |
4 |
Grille Support - Right |
643799 |
5 |
Grille Support - Left |
643801 |
6 |
Rear Hood Support |
643797 |
7 |
Clutch Shield |
643766 |
8 |
Radiator |
101610 |
9 |
Grille |
643401 |
10 |
Lower Engine Mount - Right |
643604 |
11 |
Lower Engine Mount - Left |
643605 |
12 |
Voltage Regulator |
185530 |
13 |
Upper Engine Mount - Right |
643292 |
14 |
Upper Engine Mount - Left |
643291 |
15 |
Vibration Isolator |
424078 |
16 |
Mount - Fuel Solenoid/Filter |
643591 |
17 |
Fuel Filter |
101000 |
18 |
Fuel Solenoid |
603350 |
19 |
Cable Assembly - Fuel Solenoid |
603209 |
20 |
Ball Joint |
265610 |
21 |
Tractor Frame |
643392 |
22 |
Engine - Kubota Diesel |
100176 |
23 |
Muffler & Gasket Assembly |
603590 |
24 |
Air Filter |
100940 |
25 |
Air Intake Hose |
424515 |
26 |
Fuel Tank Assembly |
603812 |
27 |
Mounting Bracket |
643144 |
28 |
Fuel Cap w/Level |
141125 |
29 |
Fuel Draw Tube |
101818 |
30 |
Clamp |
280261 |
31 |
Hose |
821713 |
32 |
Fuel Pre Filter |
101005 |
33 |
Fitting |
363825 |
34 |
Clamp |
280257 |
35 |
Return Fuel Line Hose |
821740 |
36 |
Spacer |
282615 |
37 |
Throttle Assembly |
603850 |
- |
Control Cable Assembly |
323625 |
- |
Throttle Lever Stop |
722009 |
38 |
Brake Lever |
603557 |
39 |
Handle Grip |
422150 |
40 |
Rod |
730361 |
41 |
Clevis Yoke |
265537 |
42 |
Bolt |
259741 |
43 |
Cotter Pin |
260624 |
44 |
Console |
623242 |
45 |
Panel |
721076 |
46 |
Fender - Right |
643352 |
47 |
Fender - Left |
643353 |
48 |
Fender Edge Trim |
822635 |
49 |
Wheel & Tire Assembly - 20 x 10 x 8 |
483921 |
- |
Wheel - 8 x 6 |
483410 |
- |
Turf Tire - 20 x 10 x 8 |
482471 |
- |
Wheel & Tire - Bar Tread - Right - 21 x 11 x 8 |
483930 |
- |
Wheel & Tire - Bar Tread - Left - 21 x 11 x 8 |
483931 |
- |
Wheel - 8 x 9.125 |
483415 |
- |
Tire - Bar Tread - 21 x 11 x 8 |
482480 |
50 |
Plug |
422065 |
51 |
Foot Rest |
603345 |
52 |
Rubber Bumper |
424015 |
53 |
Rod |
780658 |
54 |
External Retainer |
263500 |
55 |
Rear Axle Pivot Assembly |
604597 |
56 |
Beam - Dual Wheel |
824510 |
57 |
Fork Assembly |
604364 |
58 |
Wheel & Tire Assembly - 13 x 5 x 6 |
483861 |
- |
Tire - 13 x 5.00 x 6 |
482350 |
- |
Wheel - 6 x 3.25 |
483301 |
59 |
Spacer |
902475 |
60 |
Bearing |
120050 |
61 |
Spacer |
902425 |
62 |
Carriage Bolt |
247725 |
63 |
Lock Nut |
253970 |
64 |
Bearing |
833275 |
65 |
Washer |
257061 |
66 |
Lock Washer |
257432 |
67 |
Bolt |
243560 |
68 |
Bearing Cup |
123522 |
69 |
Bearing |
122522 |
70 |
Seal |
125855 |
71 |
Washer |
257091 |
72 |
Nut |
254502 |
73 |
Cotter Pin |
260668 |
74 |
Dust Cap |
481432 |
75 |
Oil Filter |
100800 |
76 |
Radiator Hose - Upper |
101054 |
77 |
Radiator Hose - Lower |
101055 |
78 |
Attachment Mount - Right |
643138 |
79 |
Attachment Mount - Left |
643139 |
- |
Decal Set - 721D |
603272 |
