grasshopper

721D
21HP Kubota Diesel

Year Model:1994

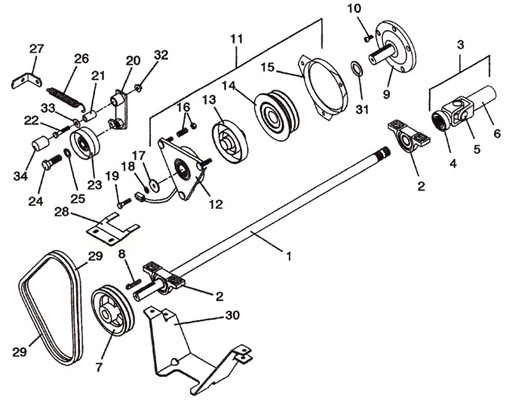

PTO Shaft & Clutch Assembly

PTO Shaft & Clutch Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Splined Power Shaft

644725

2

Pillowblock Bearing

122044

3

Sleeve Sect. Q.D. Drive Shaft

398914

4

Yoke Splined Quick Disconnect

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401015

7

Sheave

415650

8

Gib Key

281588

9

Clutch Stub Shaft

824637

10

Socket Head Screw

270075

11

Electric Clutch

604182

12

Field Assembly

388854

13

Rotor Assembly

388855

14

Armature w/Pulley

388792

15

Brake Drum

388793

16

Spring/Nut Assembly

388791

17

Washer

883803

18

Lock Washer

257412

19

Bolt

243337

20

Idler Arm

824499

-

Oilite Bearing

121758

21

Pivot Shaft Bearing

881105

22

Bolt

243355

23

Idler Pulley

393175

24

Bolt

243805

25

Lock Washer

257452

26

Spring Extension w/Swivel

283820

27

Idler Spring Bracket

732539

28

Clutch Anti Rotation Bracket

729088

29

Drive Belt (2 Required)

381914

30

Sheave Guard

725286

31

Washer

257116

32

Nut

253043

33

Washer

257040

34

Vinyl Cap

422098
