grasshopper

721D
21HP Kubota Diesel

Year Model:1995

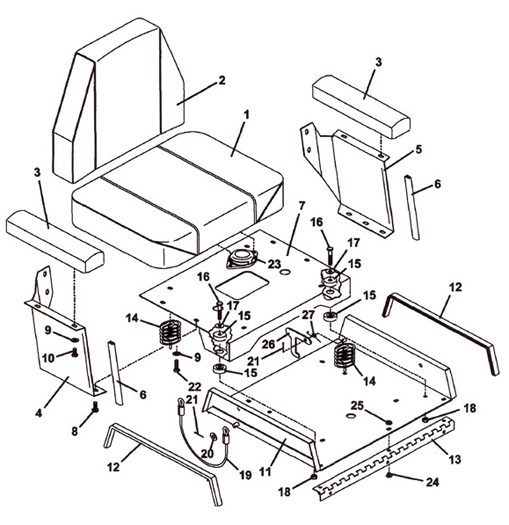

Seat Assembly

Seat Assembly


Click On The Part Number For Details

Item #

Description

Part Number

-

Seat Assembly

604737

1

Seat Cushion - Formed

321515

2

Back Cushion

321511

3

Arm Rest

321501

4

Side Member - Right

724310

5

Side Member - Left

724311

6

Seat Edge Trim

822630

7

Bottom Panel

643664

8

Bolt

253193

9

Washer

257410

10

Bolt

243195

11

Panel

643622

12

Trim

822645

13

Hinge

820166

14

Compression Spring

283515

15

Step Bushing

257037

16

Bolt

243215

17

Washer

257030

18

Nut w/Nylon Insert

253450

19

Seat Cable Assembly

323570

20

Washer

257040

21

Cotter Pin

260648

22

Bolt

243210

23

Seat Switch

183870

24

Bolt

253176

25

Nut

253025

26

Seat Latch

774248

27

Spring

284407
