grasshopper

721D
21HP Kubota Diesel

Year Model:1995

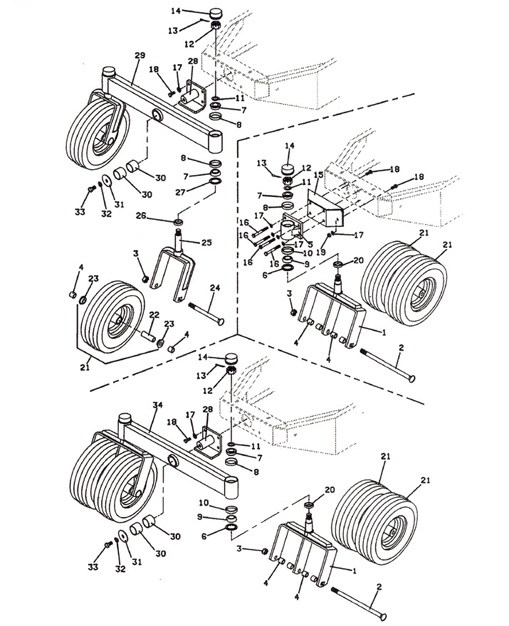

Tail Wheel

Tail Wheel


Click On The Part Number For Details

Item #

Description

Part Number

1

Dual Fork With Nut

604363

2

Bolt

604153

3

Lock Nut

253970

4

Axle Spacer

902425

5

Pivot Housing - Rear Dual Fork

604595

6

Seal

125855

7

Tapered Bearing

122522

8

Bearing Cup

123522

9

Bearing Taper

122523

10

Bearing Cup

123521

11

Washer

257091

12

Nut

254502

13

Cotter Pin

260668

14

Dust Cap

481432

15

Pivot Mount Adapter

643015

16

Bolt

243385

17

Lock Washer

257412

18

Bolt

253203

19

Nut

253043

20

Spacer

830420

21

Wheel & Tire w/Brgs & Spacer 13 x 5 x 6

483861

22

Bearing Spacer

902475

23

Wheel Bearing

120050

24

Bolt

247725

25

Rear Fork With Nut

604364

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot

604597

29

Axle Beam w/Bushing

824510

30

Oilite Bearing

833275

31

Washer

257061

32

Lock Washer

257432

33

Bolt

243560

34

Beam

824508
