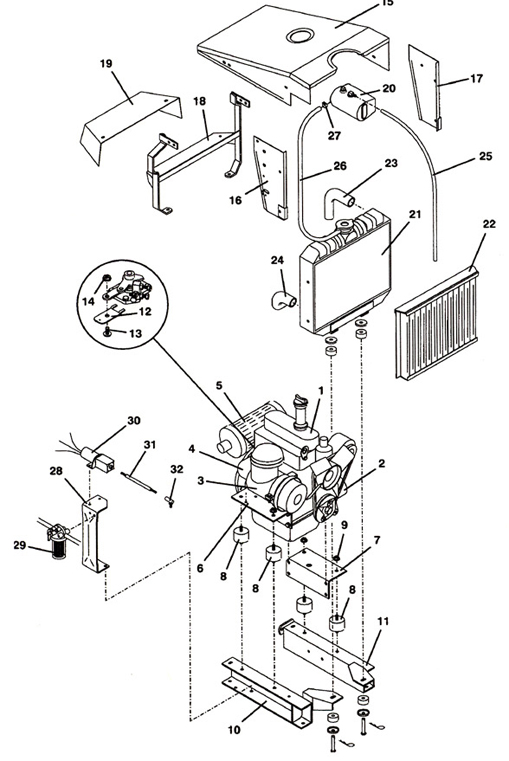

Item # |
Description |
Part Number |
1 |
Engine - Kubota Diesel |
100176 |
2 |
Oil Filter |
100800 |
3 |
Air Filter |
100940 |
- |
End Cap Cover w/Clip Springs - Air Filter |
1524111160 |
4 |
Air Intake Hose |
424515 |
5 |
Muffler & Gasket Assembly |
603590 |
- |
Exhaust Gasket |
101040 |
6 |
Engine Mount - Upper Right |
643292 |
7 |
Engine Mount - Upper Left |
643291 |
8 |
Vibration Isolator |
424078 |
9 |
Whiz Nut |
253043 |
10 |
Engine Mount - Lower Right |
643604 |
11 |
Engine Mount - Lower Left |
643605 |
12 |
Linkage Extension |
723016 |
13 |
Bolt |
253176 |
14 |
Nut |
253025 |
15 |
Hood |
693300 |
16 |
Grille Support - Right |
643799 |
17 |
Grille Support - Left |
693260 |
18 |
Rear Hood Support |
643797 |
19 |
Clutch Shield |
643766 |
20 |
Expansion Tank |
422012 |
21 |
Radiator |
101610 |
22 |
Grille |
693256 |
23 |
Radiator Hose - Upper |
101054 |
24 |
Radiator Hose - Lower |
101055 |
25 |
Hose |
821748 |
26 |
Hose |
821749 |
27 |
Hose Clamp |
280260 |
28 |
Mount - Solenoid/Filter |
643591 |
29 |
Fuel Filter |
101000 |
30 |
Fuel Solenoid |
603350 |
31 |
Cable Assembly - Fuel Solenoid |
603209 |
32 |
Ball Joint |
265610 |
