grasshopper

721D
21HP Kubota Diesel

Year Model:1997

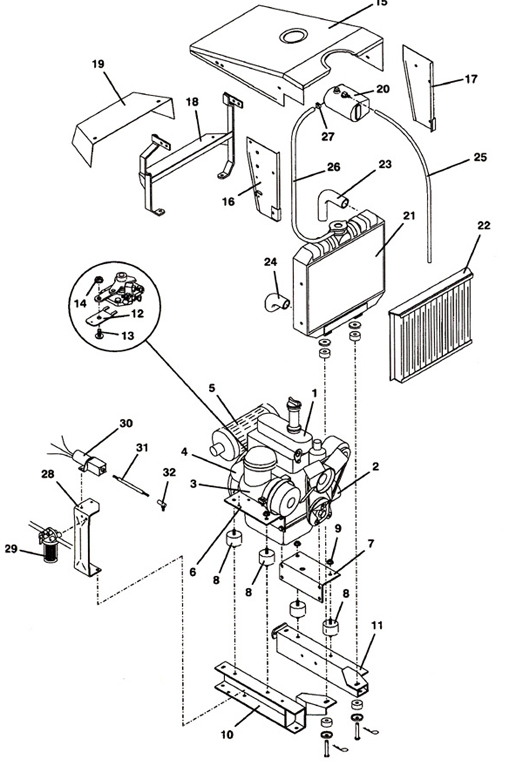

Engine Assembly

Engine Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Engine - Kubota Diesel

100176

2

Oil Filter

100800

3

Air Filter

100940

-

End Cap Cover w/Clip Springs - Air Filter

1524111160

4

Air Intake Hose

424515

5

Muffler & Gasket Assembly

603590

-

Exhaust Gasket

101040

6

Engine Mount - Upper Right

643292

7

Engine Mount - Upper Left

643291

8

Vibration Isolator

424078

9

Whiz Nut

253043

10

Engine Mount - Lower Right

643604

11

Engine Mount - Lower Left

643605

12

Linkage Extension

723016

13

Bolt

253176

14

Nut

253025

15

Hood

693300

16

Grille Support - Right

643799

17

Grille Support - Left

693260

18

Rear Hood Support

643797

19

Clutch Shield

643766

20

Expansion Tank

422012

21

Radiator

101610

22

Grille

693256

23

Radiator Hose - Upper

101054

24

Radiator Hose - Lower

101055

25

Hose

821748

26

Hose

821749

27

Hose Clamp

280260

28

Mount - Solenoid/Filter

643591

29

Fuel Filter

101000

30

Fuel Solenoid

603350

31

Cable Assembly - Fuel Solenoid

603209

32

Ball Joint

265610
