grasshopper

721D
21HP Kubota Diesel

Year Model:1997

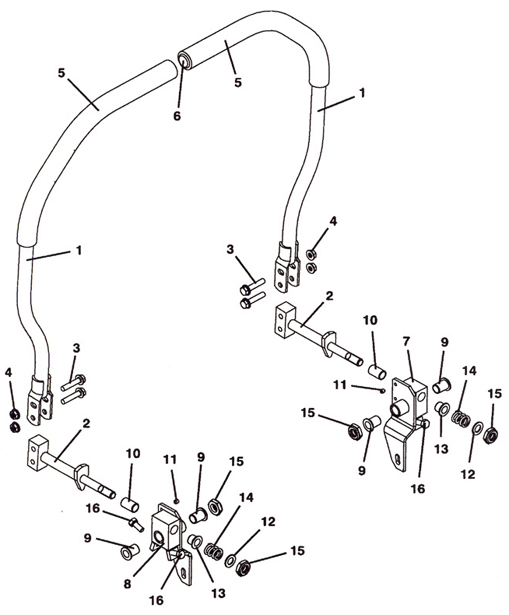

Steering Assembly

Steering Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Steering Lever Assembly (Includes 5&6)

643497

2

Steering Lever Mount

643926

3

Hex Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip - Foam

422179

6

Vinyl Cap

422095

7

Steering Pivot Right w/Stop & Bearings

604771

8

Steering Pivot Left w/Stop & Bearings

604772

9

Bearing w/Flange

422559

10

Bearing

422557

11

Set Screw

259305

12

Nylon Washer

257063

13

Bearing w/Flange

422556

14

Compression Spring

283324

15

Nut - Nylon Insert

253470

16

Bolt

243197
