grasshopper

721D
21HP Kubota Diesel

Year Model:1997

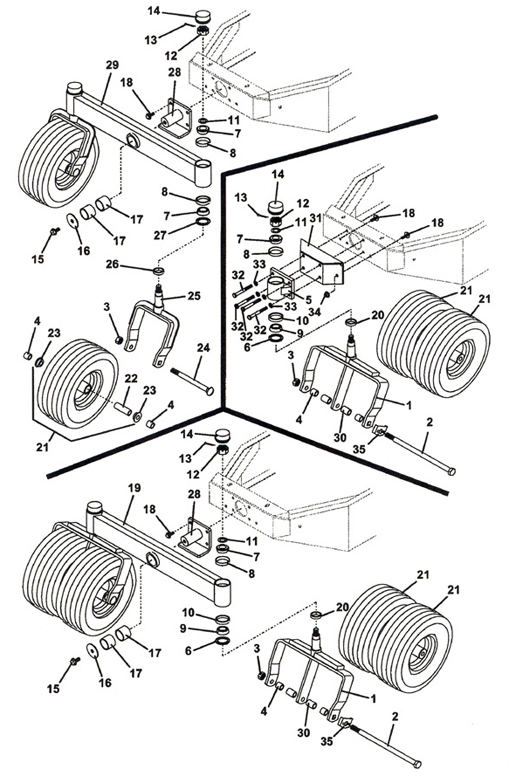

Tail Wheel

Tail Wheel


Click On The Part Number For Details

Item #

Description

Part Number

1

Dual Fork With Nut

604366

2

Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902425

5

Pivot Housing - Rear Dual Fork

604595

6

Seal

125855

7

Tapered Bearing

122522

8

Bearing Cup

123522

9

Bearing Taper

122523

10

Bearing Cup

123521

11

Washer

257091

12

Nut

254502

13

Cotter Pin

260668

14

Dust Cap

481432

15

Whiz Bolt

253243

16

Washer

257061

17

Oilite Bearing Reamed

833275

18

Bolt

253203

19

Axle Beam w/Bushing - Dual

824508

20

Spacer

830420

21

Wheel & Tire Assembly w/Bearings & Spacer

483865

-

Tire - 13x6.5x6

482355

-

Wheel Without Tire 6x4.5

483306

22

Bearing Spacer

902475

23

Wheel Bearing

120050

24

Bolt

247725

25

Rear Fork With Nut

604365

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot

604597

29

Axle Beam w/Bushing

824510

30

Axle Spacer

902427

31

Pivot Mount Adapter

643015

32

Bolt

243385

33

Lock Washer

257412

34

Whiz Nut

253043

35

Lock

723008
