grasshopper

721D
21HP Kubota Diesel

Year Model:1997

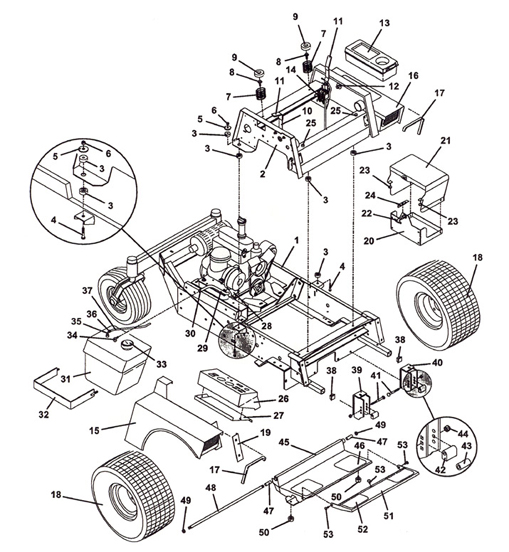

Tractor Assembly

Tractor Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Tractor Frame - Lower

644230

2

Tractor Frame - Upper

643869

3

Rubber Step Bushing

257037

4

Bolt

243220

5

Washer

774020

6

Nut - Nylon Insert

253450

7

Seat Spring

283516

8

Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly (Incl. Cable Assy)

603855

-

Cable Assembly

604821

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

-

Bolt

243330

-

Washer

257040

13

Tool Box

422040

14

Voltage Regulator 12V

185530

15

Fender - Right

693210

16

Fender - Left

693211

17

Trim - Fender Edge

822635

18

Tire & Wheel - Turf - 20 x 10 x8

483921

-

Wheel - 8 x 6

483410

-

Tire - Turf - 20 x 10 x 8

482472

-

Tire & Wheel - Right - Bar Tread - 21 x 11 x 8

483930

-

Tire & Wheel - Left - Bar Tread - 21 x 11 x 8

483931

-

Wheel - 8 x 9.125

483415

-

Tire - Bar Tread - 21 x 11 x 8

482480

19

Cover Panel

722062

20

Battery Box

603105

21

Battery Box Lid Assembly

603570

22

Rubber Draw Latch

281301

23

Rubber Bumper

424030

24

Battery Clamp

723017

25

Rubber Bumper

424015

26

Console

693104

27

Fill Panel - Console

721152

28

Fuel Prefilter

101005

29

Fuel Line

821713

30

Spring - Hose Clamp

280261

31

Fuel Tank w/Draw Tube

603812

32

Fuel Tank Mounting Bracket

643144

33

Cap w/Fuel Gauge

141125

34

Fuel Draw Tube

101818

35

Barb Fitting

101817

36

Hose Clamp

280257

37

Fuel Return Line

821740

38

Square Plug - 1"

422065

39

Deck Mount - Right

643092

40

Deck Mount - Left

643093

41

Bolt - Carriage Special

247280

42

Deck Mount Bushing

282575

43

Deck Mount Bushing - Floating Option

282576

44

Nut - Nylon Insert

253460

45

Foot Rest w/Tread, Bearing & Blocks

604346

46

Foot Rest Tread

420905

47

Nylon Bushing

422615

48

Thread Rod - Foot Platform

780673

49

Nut - Nylon Insert

253470

50

Rubber Bumper

424052

51

Foot Rest Extension w/Tread

603301

52

Foot Rest Extension Tread

420904

53

Carriage Bolt

247130

-

Decal Set - 721D

603272
