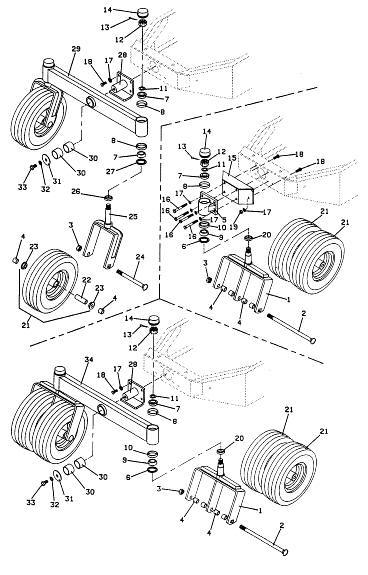

Item # |
Description |
Part Number |
| 1 |
FORK & LK NUT ASSY - DUAL |
604363 |
| 2 |
BOLT ASSY - FORK 13 |
604153 |
| 3 |
NUT LOCK |
253970 |
| 4 |
SPACER - AXLE |
902425 |
| 5 |
PIVOT HOUSING ASSY-DUAL FORK |
604595 |
| 6 |
SEAL |
125855 |
| 7 |
BEARING - TAPER |
122522 |
| 8 |
BEARING CUP |
123522 |
| 9 |
BEARING TAPER |
122523 |
| 10 |
BEARING CUP |
123521 |
| 11 |
WASHER - 14 GA BUSHING |
257091 |
| 12 |
NUT |
254502 |
| 13 |
COTTER PIN |
260668 |
| 14 |
CAP - DUST |
481432 |
| 15 |
ADAPTER - PIVOT MOUNT |
643015 |
| 16 |
HEX BOLT |
243375 |
| 17 |
WASHER - LOCK |
257412 |
| 18 |
HEX BOLT |
243330 |
| 19 |
NTU |
254450 |
| 20 |
SPACER |
830420 |
| 21 |
WHEEL - PNEU W/BRG & SPACER 6 |
483861 |
| 22 |
SPACER - REAR WHEEL BRG |
902475 |
| 23 |
BEARING - BALL |
120050 |
| 24 |
CARRIAGE BOLT |
247725 |
| 25 |
FORK & LK NUT ASSY - REAR |
604364 |
| 26 |
SPACER |
282615 |
| 27 |
SEAL |
125855 |
| 28 |
REAR AXLE PIVOT ASSY |
604597 |
| 29 |
BEAM - DUAL WHEEL |
824510 |
| 30 |
BEARING - REAMED OILITE |
833275 |
| 31 |
WASHER |
257061 |
| 32 |
WASHER - LOCK |
257432 |
| 33 |
HEX BOLT |
246560 |
| 34 |
BEAM - WIDE DUAL |
824508 |
