grasshopper

725K2

Year Model:2003

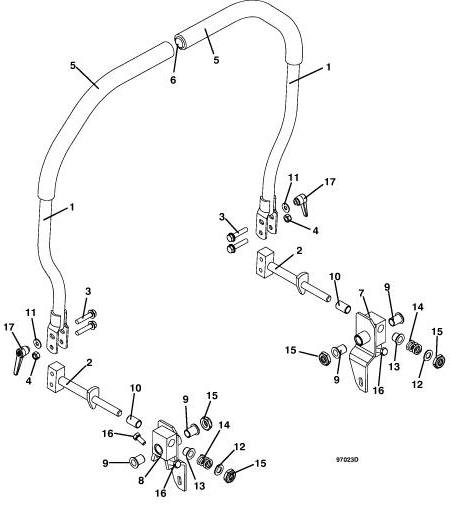

Steering


Click On The Part Number For Details

Item #

Description

Part Number

1 STEERING LEVER ASSY - WIDE STD 604778
2 MOUNT - STEERING LEVER ADJ 643926
3 BOLT WHIZ HEX FLANGE 253195
4 NUT INSERT NYLON 253450
5 GRIP HANDLE 422179
6 CAP VINYL .75 ID 422095
7 STG PIVOT RT W/STOP & BRGS 604771
8 STG PIVOT LT W/STOP & BRGS 604772
9 SLEEVE BEARING W/FLANGE 422559
10 SLEEVE BEARING 422557
11 WASHER FLAT 257019
12 WASHER 257063
13 SLEEVE BEARING W/FLANGE 422556
14 SPRING - COMPRESSION 283324
15 NUT INSERT NYLON 253470
16 HEX BOLT 243197
17 NUT - ADJUSTABLE LEVER 254438
