Genuine OEM Grasshopper Lawn Mower Parts

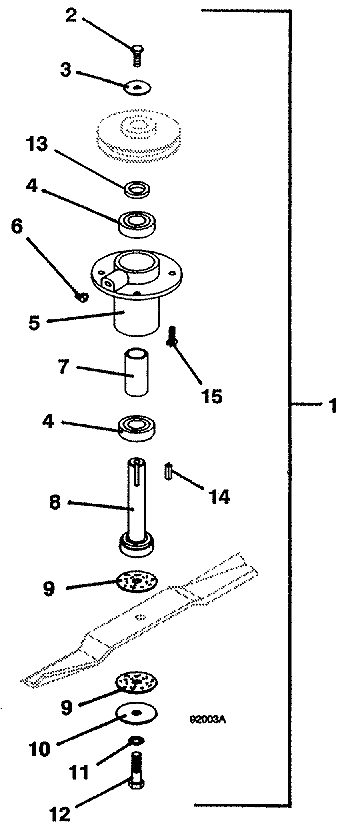

Genuine OEM Grasshopper® Mower Parts Diagrams

9048    9052    9061   •   Blade Spindle Assembly

1994

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blade Spindle Assembly (includes items 2-13 and 15)

623784

2

Hex Bolt

243331

3

Cupped Washer

257041

4

25mm Single Seal Ball Bearing

110082

5

Grease Spindle Housing

320526

6

Zerk Grease Fitting

280734

7

Bearing Tube Spacer

903640

8

Spindle Shaft Assembly

604770

9

Fiber Washer

421200

10

Washer

257061

11

Lock Washer

257432

12

Hex Bolt

243581

13

Spacer

282607

14

Square Key

281580

15

Hex Flange Whiz Bolt

253192
