grasshopper

9548
48" Deck

Year Model: 1997

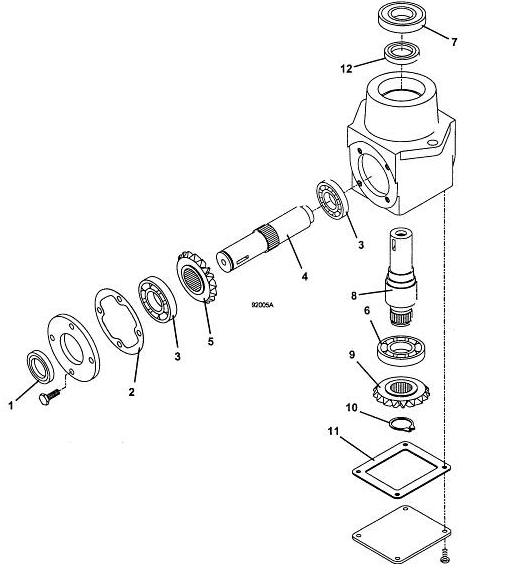

Right Angle Gearbox


Click On The Part Number For Details

Item #

Description

Part Number

1

SEAL 125336

2

GASKET - CAP GEARBOX 420201

3

BEARING BALL 120071

4

SHAFT 1.000 393517

5

GEAR - BEVEL - 8 PITCH - .995 392501

6

BEARING BALL 120065

7

BEARING - BALL DOUBLE SEAL 110080

8

SHAFT .875 393514

9

GEAR BEVEL - 8 PITCH - .865 392500

10

RETAINER EXTERNAL 263540

11

GASKET - COVER GEARBOX 420200

12

SEAL - OIL 125345

13

GEARBOX - RT ANGLE CCW 390024
