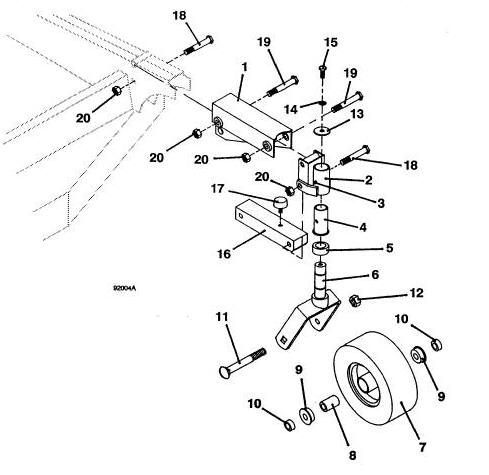

Item # |
Description |
Part Number |
1 |
LIFT CHANNEL - UPPER RT |
643500 |
|
LIFT CHANNEL - UPPER LT |
643501 |
2 |
FORK MOUNT W/BEARING RT. |
603351 |
|
FORK MOUNT W/BEARING LT. |
603352 |
3 |
FITTING GREASE |
280776 |
4 |
BUSHING - FLANGED SINTERED |
833260 |
5 |
SPACER |
902541 |
6 |
FORK - DECK 90 SERIES |
604350 |
|
O-RING |
425514 |
7 |
WHEEL ASSY - 4 - SEMI-PNEU |
603971 |
8 |
SPACER - DECK WHEEL BRG |
902473 |
9 |
BEARING - BALL |
120050 |
10 |
SPACER - AXLE |
902415 |
11 |
CARRIAGE BOLT |
247715 |
12 |
NUT LOCK |
253970 |
13 |
WASHER |
774014 |
14 |
WASHER - LOCK |
257412 |
15 |
HEX BOLT |
243331 |
16 |
STABILIZER W/BUMPER - DECK |
822312 |
17 |
RUBBER BUMPER |
424052 |
18 |
HEX BOLT |
243609 |
19 |
HEX BOLT |
243614 |
20 |
NUT LOCK |
253930 |
