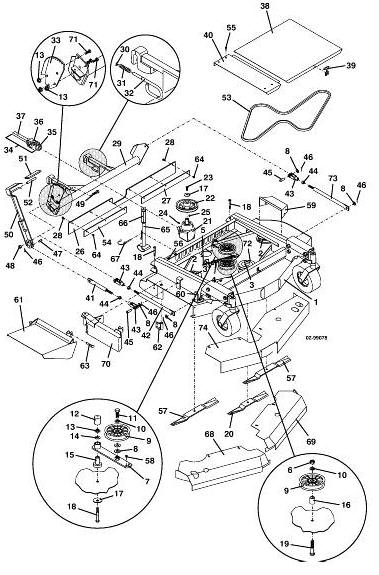

Item # |
Description |
Part Number |
1 |
DECK WELDMENT W/BELT COVER 9548 |
603286 |
2 |
SHEAVE |
414696 |
3 |
SPACER |
282630 |
4 |
SPRING - EXTENSION W/SWIVEL |
283820 |
5 |
J BOLT - IDLER ADJUSTMENT |
730391 |
6 |
NUT |
254470 |
7 |
IDLER ARM W/BEARING 7 PEDESTAL |
824502 |
8 |
WASHER |
257062 |
9 |
IDLER |
393225 |
10 |
WASHER - LOCK |
257432 |
11 |
HEX BOLT |
243565 |
12 |
CAP VINYL 1/125 ID |
422098 |
13 |
NUT WHIZ |
253043 |
14 |
WASHER |
257040 |
15 |
BEARING PEDESTAL |
121650 |
16 |
SPACER - IDLER |
902325 |
17 |
WASHER - CUPPED |
257041 |
18 |
HEX BOLT |
243365 |
19 |
HEX BOLT |
243600 |
20 |
BLADE - 15 MED LIFT |
320231 |
- |
BLADE - 15 HI-LIFT NOTCH |
320234 |
- |
BLADE - 15 CONTOUR |
320233 |
21 |
GEARBOX RT ANGLE CCW |
390024 |
22 |
SHEAVE |
415886 |
23 |
HEX BOLT |
243331 |
24 |
KEY WOODRUFF |
281833 |
25 |
KEY WOODRUFF |
281828 |
26 |
FLAP DECK - 9348 LT |
424192 |
27 |
STRAP - DEFLECTOR 9348 LT |
782569 |
28 |
BOLT WHIZ TRUSS |
253177 |
29 |
LIFT ARM ASSY - 9548 |
603576 |
30 |
RETAINER EXTERNAL |
263490 |
31 |
SPRING - COMPRESSION |
283285 |
32 |
LATCH PIN - DECK MOUNT |
730433 |
33 |
LEVER MOUNT - UPPER |
726100 |
34 |
UN HALF SHAFT |
398525 |
35 |
YOKE |
401010 |
36 |
CROSS 7 BEARING |
121010 |
37 |
YOKE & SHAFT |
402605 |
38 |
SHIELD ASSY - 9548 W/SLOTS |
604722 |
39 |
LATCH RUBBER DRAW |
281301 |
40 |
SHIELD - BELT RT 9548/52 |
722281 |
41 |
LINKAGE - LIFT LEVER |
603562 |
42 |
LINKAGE ASSY - 9548/52 RT |
603572 |
43 |
YOKE CLEVIS |
265565 |
44 |
NUT |
254493 |
45 |
CLEVIS PIN |
261426 |
46 |
COTTER PIN |
260650 |
47 |
CLEVIS PIN |
261346 |
48 |
NUT LOCK |
253930 |
49 |
HEX BOLT |
243580 |
50 |
LEVER - DECK LIFT |
643529 |
51 |
GRIP HANDLE |
422155 |
52 |
GRIP HANDLE |
422158 |
53 |
BELT |
383008 |
54 |
STRAP - DEFLECTOR RT |
774219 |
55 |
BOLT WHIZ HEX |
253173 |
56 |
NUT |
254431 |
57 |
BLADE -18 MED LIFT |
320236 |
- |
BLADE -18 HI-LIFT NOTCH |
320239 |
- |
BLADE -18 CONTOUR |
320238 |
58 |
NYLON BEARING |
422520 |
59 |
SHIELD - BELT LT |
722249 |
60 |
SHAFT - CLEVIS |
643235 |
61 |
SHIELD - BELT LT |
644751 |
62 |
SHAFT - CLEVIS |
643632 |
63 |
HITCH PIN |
260400 |
64 |
NUT WHIZ |
253025 |
65 |
DECK STAND |
603808 |
66 |
GRIP HANDLE |
422175 |
67 |
LINCH PIN |
261624 |
68 |
FRONT SHROUD - 9548 RT |
643194 |
69 |
FRONT SHROUD - 9548 LT |
643195 |
70 |
DISCHARGE FILLER |
643691 |
71 |
HEX BOLT |
243330 |
72 |
SHEAVE |
414685 |
73 |
LINKAGE ASSY - 9548/52 LT |
603573 |
74 |
0IR FOIL - STRAIGHT 48 |
644192 |
75 |
DECAL SET - MOWER SAFETY |
603280 |
