grasshopper

9548
48" Deck

Year Model: 2003

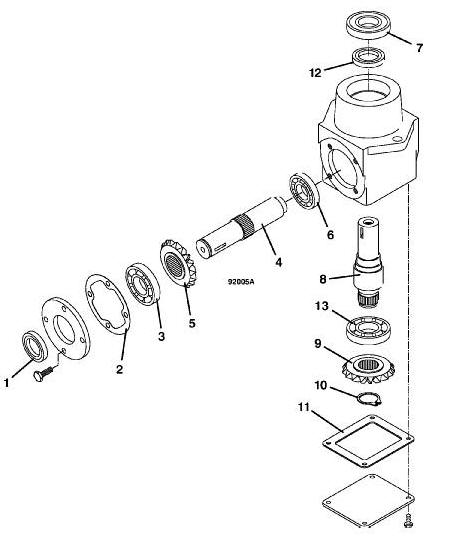

Right Angle Gearbox


Click On The Part Number For Details

Item #

Description

Part Number

1

SEAL 125336

2

GASKET CAP GEARBOX 420201

3

BEARING BALL 120071

4

SHAFT 1.000 393517

5

GEAR BEVEL - 8 PITCH 392501

6

BEARING BALL 120065

7

BEARING - BALL DOUBLE SEAL 110080

8

SHAFT .875 393512
  SHAFT .875 393514
9 GEAR BEVEL - 8 PITCH 392500
10 RETAINER EXTERNAL 263540
11 GASKET COVER GEARBOX 420200
12 SEAL - OIL 125345
13 BEARING BAL 120072
  BEARING BALL 120071
