grasshopper

9552
52 " Deck

Year Model: 1998

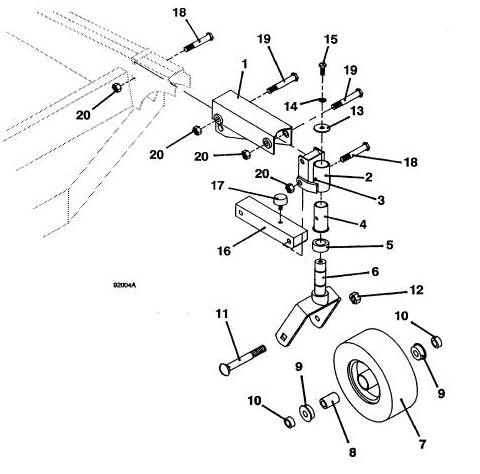

Wheel Lift Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 LIFT CHANNEL - UPPER RT 643500
  LIFT CHANNEL - UPPER LT 643501
2 FORK MOUNT W/BEARING RT 603351
  FORK MOUNT W/BEARING LT 603352
3 FITTING GREASE 280776
4 BUSHING - FLANGED SINTERED 833260
5 SPACER 902541
6 FORK - DECK 90SERIES 601350
  O-RING 425514
7 WHEEEL ASSY - 4 SEMI-PNEU 603971
8 SPACER - DECK WHEEL BRG 902473
9 BEARING - BALL 120050
10 SPACER - AXLE 902415
11 CARRIAGE BOLT 247715
12 NUT LOCK 253970
13 WASHER 774014
14 WASHER - LOCK 257412
15 HEX BOLT 243331
16 STABILIZER W/BUMPER - DECK 822312
17 RUBBER BUMPER 424052
18 HEX BOLT 243609
19 HEX BOLT 243614
20 NUT LOCK 253930
