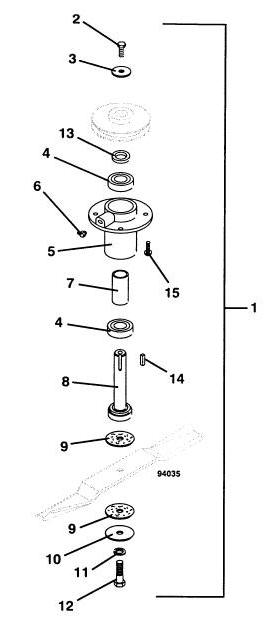

Item # |
Description |
Part Number |
1 |
SPINDLE ASSY - BLADE |
623784 |
|
SPINDLE ASSY - 9561 LT/CTR |
623783 |
2 |
HEX BOLT |
243331 |
3 |
WASHER - CUPPED |
257041 |
4 |
BEARING - BALL SIGNLE SEAL |
110082 |
5 |
SPINDLE HOUSING GREASE |
320526 |
6 |
FITTING GREASE |
280734 |
7 |
SPACER - BEARING TUBE |
903640 |
8 |
SPINDLE ASSEMBLY - SHAFT |
604770 |
|
SPINDLE SHAFT ASSY |
604768 |
9 |
WASHER - FIBER |
421200 |
10 |
WASHER |
257061 |
11 |
WASHER - LOCK |
257432 |
12 |
HEX BOLT |
243581 |
13 |
SPACER |
282607 |
14 |
KEY SQUARE |
281580 |
|
KEY SQUARE |
281583 |
15 |
BOLT WHIZ HEX FLANGE |
253192 |
