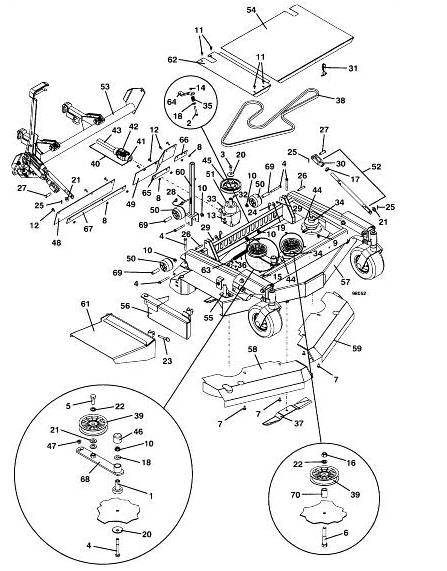

Item # |
Description |
Part Number |
1 |
BEARING PEDESTAL |
121650 |
2 |
HEX BOLT |
243225 |
3 |
HEX BOLT |
243331 |
4 |
HEX BOLT |
243365 |
5 |
HEX BOLT |
243565 |
6 |
HEX BOLT |
243600 |
7 |
CARRIAGE BOLT |
247130 |
8 |
NUT WHIZ |
253025 |
9 |
NUT WHIZ |
253035 |
10 |
NUT WHIZ |
253043 |
11 |
BOLT WHIZ TRUSS |
253177 |
12 |
BOLT WHIZ HEX FLANGE |
253192 |
13 |
BOLT WHIZ |
253207 |
14 |
NUT INSERT NYLON |
253450 |
15 |
NUT |
254431 |
16 |
NUT |
254470 |
17 |
NUT |
254493 |
18 |
WASHER |
257030 |
19 |
WASHER |
257040 |
20 |
WASHER - CUPPED |
257041 |
21 |
WASHER |
257062 |
22 |
WASHER - LOCK |
257432 |
23 |
HITCH PIN |
260400 |
24 |
HAIR PIN |
260523 |
25 |
COTTER PIN |
260650 |
26 |
CLEVIS PIN |
261362 |
27 |
CLEVIS PIN |
261426 |
28 |
LINCH PIN |
261624 |
29 |
RETAINER PUSH-ON |
262950 |
30 |
YOKE CLEVIS |
265565 |
31 |
LATCH RUBBER DRAW |
281301 |
32 |
KEY WOODRUFF |
281828 |
33 |
KEY WOODRUFF |
281833 |
34 |
SPACER |
282630 |
35 |
SPRING - COMPRESSION |
283324 |
36 |
SPRING - EXTENSION W.SWIVEL |
283820 |
37 |
BLADE -15 MED LIFT |
320231 |
|
BLADE -15 HI-LIFT NOTCH |
320234 |
|
BLADE -15 CONTOUR |
320233 |
38 |
BELT |
383010 |
39 |
IDLER |
393225 |
40 |
UN HALF SHAFT |
398523 |
41 |
YOKE |
401010 |
42 |
CROSS & BEARING |
121010 |
43 |
YOKE & SHAFT |
402605 |
44 |
SHEAVE |
414675 |
45 |
SHEAVE |
415876 |
46 |
CAP VINYL 1.125 ID |
422098 |
47 |
NYLON BEARING |
422520 |
48 |
FLAP DECK - 9644 RIGHT |
424202 |
49 |
FLAP DECK - 9544 LEFT |
424203 |
50 |
ROLLER |
426122 |
51 |
GEARBOX RT ANGLE CCW |
390024 |
52 |
LINKAGE ARM - 44 DECK |
603563 |
53 |
LIFT ARM ASSY - 9644 |
604544 |
54 |
SHIELD ASSY - 9644 |
604750 |
55 |
SHAFT - CLEVIS |
643235 |
56 |
DISCHARGE FILLER |
643691 |
57 |
DEC K - 9644 W/A |
643993 |
58 |
FRONT SHROUD - 9544 RT |
644240 |
59 |
FRONT SHROUD - 9544 LT |
644241 |
60 |
JACK STAND W/ROLLER ASSY |
604485 |
61 |
SHIEDL - DISCHARGE 95S |
644751 |
62 |
SHIELD - BELT 9644 RT |
722326 |
63 |
K BP;T - IDLER ADJUSTMENT |
730391 |
64 |
CLAMP - SLIP YOKE |
732874 |
65 |
STRAP - DEFLECTOR LT INSIDE |
774054 |
66 |
STRAP - DEFLECTOR 9544 RT |
774056 |
67 |
STRAP - DEFLECTOR 9544 RT |
782571 |
68 |
IDLER ARM W/BEARING & PEDESTAL |
824502 |
69 |
SPACER - ROLLER MOUNT |
902284 |
70 |
SPACER - IDLER |
902325 |
71 |
DECAL SET-SL96/98 MOWER SAFETY |
603282 |
