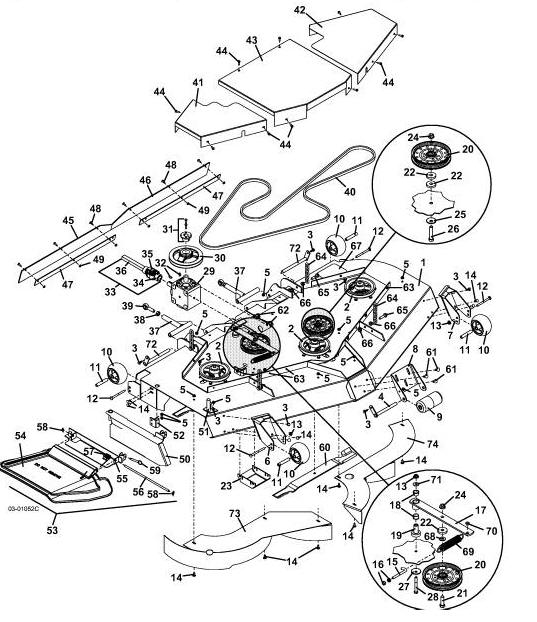

Item # |
Description |
Part Number |
| 1 |
MOWER DECK - 9722 |
643996 |
| 2 |
SHEAVE |
414745 |
| 3 |
BOLT WHIZ HEX FLANGE |
253192 |
| 4 |
LOCK PIN - ROLLER |
644512 |
| 5 |
NUT WHIZ |
253035 |
| 6 |
MOUNT - ANTI-SCALP ROLLER RT |
643842 |
| 7 |
MOUNT - ANTI-SCALP ROLLER LT |
643695 |
| 8 |
ROLLER MOUNT - M1 72 |
755071 |
| 9 |
ROLLER - CENTER 2 PIECE ASSY |
603725 |
| 10 |
WHEEL - ANTI-SCALP CTR HUB |
484230 |
| 11 |
TUBE - BEARING |
942137 |
| 12 |
CARRIAGE BOLT |
247310 |
| 13 |
NUT WHIZ |
253043 |
| 14 |
CARRIAGE BOLT |
247130 |
| 15 |
J BOLT - IDLER ADJUSTMENT |
730391 |
| 16 |
NUT |
254450 |
| 17 |
IDLER ARM ASSY M1 52/61 |
824488 |
| 18 |
BEARING - OILITE |
121756 |
| 19 |
BEARING PEDESTAL |
121650 |
| 20 |
IDLER |
393250 |
| 21 |
HEX BOLT |
243575 |
| 22 |
WASHER |
883804 |
| 23 |
SHIELD - 9772 GEARBOX |
754149 |
| 24 |
NUT FLANGWE SPIRAL LOC |
253067 |
| 25 |
WASHER |
257059 |
| 26 |
HEX BOLT |
243590 |
| 27 |
WASHER - CUPPED |
257041 |
| 28 |
HEX BOLT |
243365 |
| 29 |
GEARBOX RT ANGLE-STANDARD |
390029 |
| |
GEARBOX - RT ANDLGE HI-PERFORM |
390030 |
| 30 |
SHEAVE |
416345 |
| 31 |
BUSHING |
417010 |
| 32 |
KEY WOODRUFF |
281839 |
| 33 |
UN HALF SHAFT |
398529 |
| 34 |
YOKE |
401013 |
| 35 |
CROSS & BEARING |
121010 |
| 36 |
YOKE AND SHAFT |
402608 |
| 37 |
RADIUS ARM ASSY - 8 9772 |
604672 |
| 38 |
NUT |
254493 |
| 39 |
ROD END |
265665 |
| 40 |
BELT |
382099 |
| 41 |
SHIELD - BELT 9772 RIGHT |
723238 |
| 42 |
SHIELD - BELT 9772 LEFT |
723347 |
| 43 |
SHIELD - BELT 9772 CENTER |
723369 |
| 44 |
BOLT WHIZ HEX |
253175 |
| 45 |
FLAP - DECK - 9772 RIGHT |
424213 |
| 46 |
FLAP - DECK - 9772 LEFT |
424214 |
| 47 |
STRAP - DEFLECTOR M161/9772 |
774337 |
| 48 |
BOLT WHIZ TRUSS |
253177 |
| 49 |
NUT WHIZ |
253025 |
| 50 |
END CAP - M1 MULCH |
644224 |
| 51 |
SHAFT - CLEVIS |
643235 |
| 52 |
MOUNT - PIVOT VAC HOUSING |
643632 |
| 53 |
SHIELD - DISCHARGE |
604749 |
| 54 |
MOUNT - FLEX DISCHARGE |
422042 |
| 55 |
MOUNT - FLEX DISCHARGE SHIELD |
644767 |
| 56 |
PIN - FLEX DISCHARGE SHIELD |
780650 |
| 57 |
SPRING - TORSION |
284406 |
| 58 |
RING COTTER |
260608 |
| 59 |
HITCH PIN |
260400 |
| 60 |
BLADE -25 HI-LIFT NOTCH |
320253 |
| |
BLADE -25 MED LIFT |
320250 |
| |
BLADE -25 CONTOUR |
320252 |
| |
BLADE -25 EXTREME HI-LIFT |
320254 |
| 61 |
CARRIAGE BOLT |
247253 |
| 62 |
BOLT WHIZ |
253200 |
| 63 |
NUT |
254431 |
| 64 |
CHAIN -5 LINKS M1 |
820331 |
| 65 |
HEX BOLT GR 8 |
243458 |
| 66 |
NUT WHIZ |
253058 |
| 67 |
TREND - STEP |
420901 |
| 68 |
WASHER |
257062 |
| 69 |
SPRING - EXTENSION |
283848 |
| 70 |
NYLON BEARING |
422520 |
| 71 |
WASHER |
257040 |
| 72 |
PIN - RADIUS ARM 9772 |
644636 |
| 73 |
MULCH PLATE - M1 72 RIGHT |
644612 |
| 74 |
MULCH PLATE - M1 72 LEFT |
644613 |
| 75 |
DECAL SET - MOWER SAFETY |
603280 |
