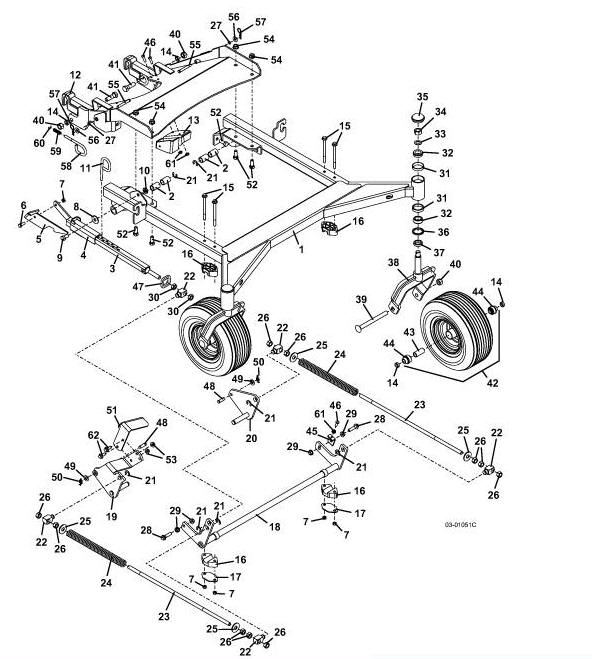

Item # |
Description |
Part Number |
| 1 |
CARRIER - 9772 |
644055 |
| |
DECAL - CUTTING HEIGHT M1 |
162187 |
| 2 |
BEARING OILITE |
121766 |
| 3 |
TUBE - HEIGHT ADJUSTMENT 9772 |
644734 |
| 4 |
GUIDE - LATCH TUBE |
644305 |
| 5 |
LATCH - DECK HEIGHT 9772 |
775111 |
| 6 |
HEX BOLT |
243330 |
| 7 |
NUT LOCK |
253890 |
| 8 |
WASHER - NYLON |
821516 |
| 9 |
HEX BOLT |
243560 |
| 10 |
NUT INSERT NYLON |
253470 |
| 11 |
DECK PIN - HEIGHT ADJUSTMENT |
730434 |
| 12 |
ATTACHING ARM -9772 |
644054 |
| 13 |
MOUNT - 9772 DECK JAM |
644566 |
| 14 |
SPACER - AXLE |
902422 |
| 15 |
BOLT FLANGE |
253215 |
| 16 |
BEARING BLOXK - M1 |
423643 |
| 17 |
PLATE - LIFT BEARING |
774064 |
| 18 |
LIFT LEVER - 9772 DECK |
644533 |
| 19 |
RODKER - REAR W/LEVER |
644700 |
| 20 |
ROCKER - REAR DECK M1 LT |
644708 |
| 21 |
RETAINER EXTERNAL |
263529 |
| 22 |
SHAFT - SPRING ROD MT |
882035 |
| 23 |
SHAFT - SPRING |
780663 |
| 24 |
SPRING - COMPRESSION |
283395 |
| 25 |
WASHER |
257080 |
| 26 |
NUT |
254490 |
| 27 |
RETAINER PUSH-ON |
262950 |
| 28 |
HEX BOLT GR 8 |
243458 |
| 29 |
NUT WHIZ |
253058 |
| 30 |
NUT |
254493 |
| 31 |
BEARING CUP |
123522 |
| 32 |
BEARING - TAPER |
122522 |
| 33 |
WASHER - 14 GA BUSHING |
257091 |
| 34 |
NUT LOCK |
253992 |
| 35 |
DUST CAP - DOMED |
481434 |
| 36 |
SEAL |
125855 |
| 37 |
SPACER |
282615 |
| 38 |
FORK & LK NUT ASSY |
604365 |
| 39 |
CARRIAGE BOLT |
247725 |
| 40 |
NUT LOCK |
253970 |
| 41 |
HEX BOLT |
243810 |
| 42 |
WHEEL ASSY - REAR W/DP BEARINGS |
603975 |
| 43 |
SPACER - AXLE CENTER REAR |
902429 |
| 44 |
BEARING - BALL DP WHEEL |
120048 |
| 45 |
STRAP - ADJUSTING M1 DECK |
732586 |
| 46 |
HEX BOLT |
243205 |
| 47 |
SPACER - HEIGHT ADJUSTMENT M1 |
423696 |
| 48 |
CLEVIS PIN |
261405 |
| 49 |
WASHER |
253051 |
| 50 |
RING COTTER |
260612 |
| 51 |
FOOT LEVER - ADJUSTMENT M1 |
733357 |
| 52 |
CLEVIS PIN |
243565 |
| 53 |
NUT WHIZ |
253043 |
| 54 |
NUT FLANGE SPIRAL LOC |
253067 |
| 55 |
CLEVIS PIN |
261365 |
| 56 |
WASHER |
257040 |
| 57 |
HAIR PIN |
260523 |
| 58 |
LATCH PIN - DECK MOUNT |
730433 |
| 59 |
SPRING - COMPRESSION |
283285 |
| 60 |
RETAINER EXTERNAL |
263490 |
| 61 |
NUT WHIZ |
253035 |
| 62 |
BOLT WHIZ FLANGE |
253203 |
