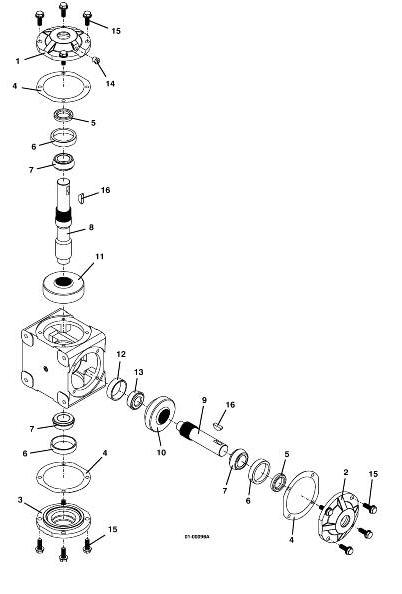

Item # |
Description |
Part Number |
| 1 |
CAP THRU WVENT |
392055 |
| 2 |
CAP THRU |
392056 |
| 3 |
CAP BLANK |
392057 |
| 4 |
GASKET SHIM |
420403 |
| |
GASKET SHIM |
420402 |
| |
GASKET SHIM |
420401 |
| 5 |
SEAL |
125384 |
| 6 |
BEARING CUP |
123522 |
| 7 |
BEARING - TAPER |
122522 |
| 8 |
SHAFT THRU SPLINED |
393615 |
| 9 |
SHAFT SPLINED |
393582 |
| 10 |
GEAR BEVEL RH 33 TEETH |
392530 |
| |
GEAR LH 24 TEETH |
392532 |
| 11 |
GEAR BEVEL RH 39 TEETH |
392531 |
| |
GEAR RH 36 TAPER |
392533 |
| 12 |
BEARING CUP |
123510 |
| 13 |
BEARING TAPER |
122510 |
| 14 |
PLUG - VENT |
365505 |
| 15 |
BOLT WHIZ HEX FLANGE |
253192 |
| 16 |
KEY WOODRUFF |
281839 |
| 17 |
GEARBOX - RT ANGLE-STANDARD |
390029 |
| 18 |
GEARBOX - RT ANGLE HI-PERFORM |
390030 |
