grasshopper

9772 Model Deck

Year Model: 2005

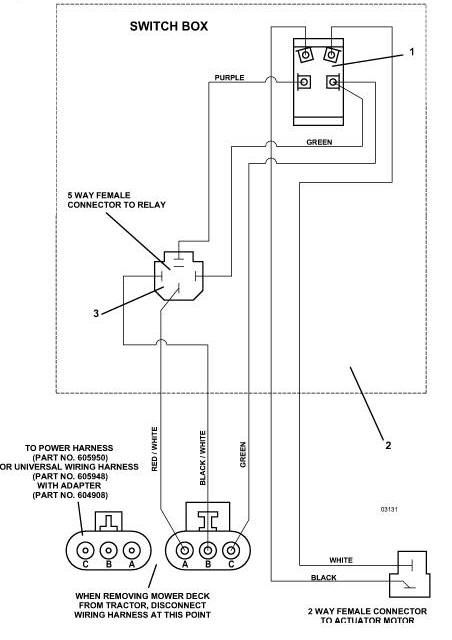

Electric Height Kit Wiring Diagram


Click On The Part Number For Details

Item #

Description

Part Number

1 SWITCH - ROCKER 2P DT 2POS 184177
2 SWITCH BOX - ROCKER 833515
  COVER-SWITCH BOX 833524
3 RELAY 12VDC 184272
4 WIRE GRP-ELEC HT ADJ UNV M172 605942
