grasshopper

9772 Model Deck

Year Model: 2008

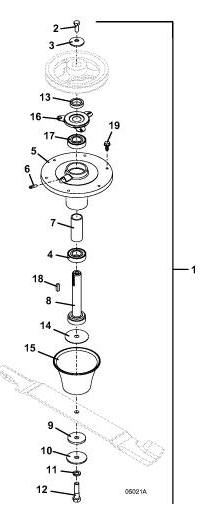

Blade Spindle Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 BLADE SPINDLE ASSY M172 LT/RT 623764
2 HEX BOLT 243331
3 WASHER - CUPPED 257041
4 BEARING - BALL SINGLE SEAL 110082
5 SPINDLE HOUSING - CAST 824151
6 FITTING GREASE 280745
7 SPACER - BEARING DEEP SPINDLE 903643
8 SPINDLE - SHAFT ASSY 98S 604774
9 WASHER - FIBER 421200
10 WASHER 257061
11 WASHER - LOCK 257432
12 HEX BOLT 243581
13 SPACER 282607
14 WASHER 772061
15 DEFLECTOR CONE 423680
16 BEARING SHIELD 721167
17 BEARING - BALL DOUBLE SEAL 110080
18 KEY SQUARE 281586
19 BOLT WHIZ HEX FLANGE 253192
