grasshopper

9772 Model Deck

Year Model: 2008

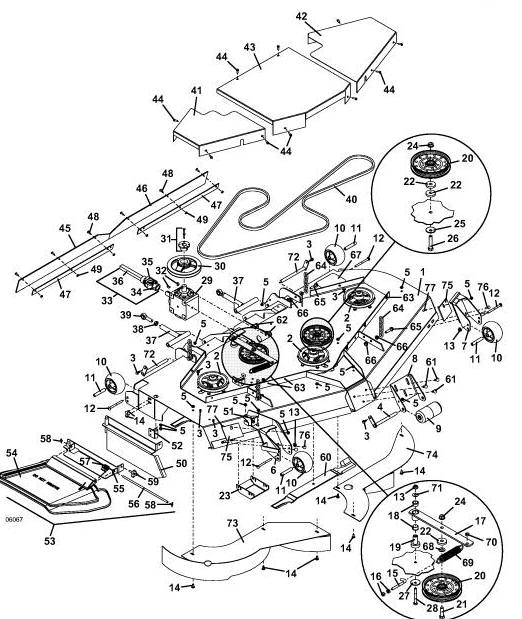

Mower Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 MOWER DECK - 9772 643996
2 SHEAVE 414745
3 BOLT WHIZ HEX FLANGE 253192
4 LOCK PIN  - ROLLER 644512
5 NUT WHIZ 253035
6 MOUNT - ANTI SCALP ROLLER RT 644584
7 MOUNT - ANTI SCALP ROLLER LT 643695
8 ROLLER MOUNT - M1 72 755071
9 ROLLER - CENTER 2 PIECE ASSY 603725
10 WHEEL - ANTI SCALP CTR HUB 484230
11 TUBE - BEARING 942137
12 CARRIAGE BOLT 247310
13 NUT WHIZ 253043
14 CARRIAGE BOLT 247130
15 J BOLT - IDLER ADJUSTMENT 730391
16 NUT 254450
17 IDLER ARM ASSY - M152/61 824488
18 BEARING - OILITE 121756
19 BEARING PEDESTAL 121650
20 IDLER 393250
21 HEX BOLT 243575
22 WASHER 883804
23 SHIELD - 9772 GEARBOX 754149
24 NUT FLANGE SPIRAL LOC 253067
25 WASHER 257059
26 HEX BOLT 243590
27 WASHER - CUPPED 257041
28 HEX BOLT 243365
29 GEARBOX - RT ANGLE STANDARD 390029
  GEARBOX - RT ANGLE HI PERFORM 390030
30 SHEAVE 416345
31 BUSHING 417010
32 KEY WOODRUFF 281839
33 UN HALF SHAFT 398529
34 YOKE 401013
35 CROSS & BEARING 121010
36 YOKE AND SHAFT 402608
37 RADIUS ARM ASSY - 8 9772 604672
38 NUT 554493
39 ROD END 265665
40 BELT 382099
41 SHIELD - BELT 9772 RIGHT 723238
42 SHIELD - BELT 9772 LEFT 723347
43 SHIELD - BELT 9772 CENTER 723369
44 BOLT WHIZ HEX 253175
45 FLAP - DECK - 9772 RIGHT 424216
46 FLAP - DECK - 9772 LEFT 424214
47 STRAP - DEFLECTOR M161/9772 774337
48 BOLT WHIZ TRUSS 253177
49 NUT WHIZ 253025
50 END CAP - MULCH 3452/61 644058
51 NUT SPEED ZP 254448
52 MOUNT - PIVOT VAC HOUSING 643632
53 DISCHARGE SHIELD ASSY - FLEX 3452/61 604317
54 SHIELD - FLEX DISCHARGE 422042
55 MOUNT - DISCHARGE SHLD 3452/61 644570
56 PIN - FLEX DISCHARGE SHIELD 780650
57 SPRING - TORSION 284406
58 RING COTTER 260608
59 STUD -3 PRONG HED - DECK 252821
60 BLADE -25 HI-LIFT NOTCH 320253
  BLADE -25 MED LIFT 320250
  BLADE -25 CONTOUR 320252
  BLADE -25 EXTREME HI-LIFT 320254
  BLADE -25 HI-LOW MULCH 320255
61 CARRIAGE BOLT 247253
62 BOLT WHIZ 253200
63 NUT 254431
64 CHAIN - 5 LINKS M1 820331
65 HEX BOLT GR 8 243458
66 NUT WHIZ 253058
67 TREAD - STEP 420901
68 WASHER 257062
69 SPRING - EXTENSION 283848
70 NYLON BEARING 422520
71 WASHER 257040
72 PIN - RADIUS ARM 9772 644636
73 MULCH PLATE - M1 72 RIGHT 644612
74 MULCH PLATE - M1 72 RIGHT 644613
75 SPACER - ROLLER 775068
76 CARRIAGE BOLT 247135
77 BOLT WHIZ HEX FLANGE 253193
78 DECAL SET - MOWER SAFETY 603280
