2006 thru 2015 Electric Lift Edger Assembly
Clevis Mount

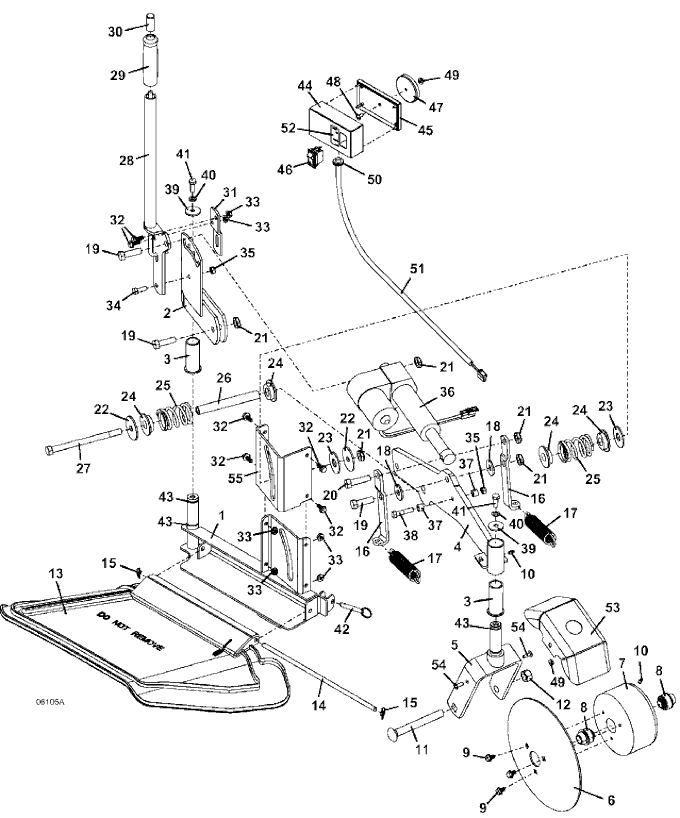

2006 thru 2015 electric lift assembly clevis mount

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Edger Clevis Mount

644599

2

Edger Height Adjustment Pivot

824604

3

Flanged Sintered Bushing

833260

4

Edger Disk Pivot Arm

824603

5

Fork Assembly

604355

-

O-Ring

425514

6

Edger Disk

824149

7

Edger Hub

783900

8

Wheel Ball Bearing

120048

9

Whiz Bolt

253189

10

Grease Zerk Fitting

280776

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Flex Discharge Shield

422042

14

Flex Dischage Shield Pin

780650

15

Cotter Ring

260608

16

Edger Spring Bracket

732969

17

Extension Spring

283848

18

Nylon Washer

821516

19

Hex Bolt

243575

20

Hex Bolt

243580

21

Nylon Insert Nut

253470

22

Washer

257061

23

Nylon Washer

821520

24

Spring Guide

885005

25

Compression Spring

283517

26

Slider Tube

942177

27

Hex Bolt

243650

28

Disk Lift Lever

643680

29

Thumb Release Handle Grip

833540

30

Thumb Button Push Rod

821675

31

Lever Guide

732593

32

Hex Flanged Whiz Bolt

253192

33

Whiz Nut

253035

34

Hex Bolt

243330

35

Lock Nut

253890

36

Actuator

180024

37

Spacer

902280

38

Hex Bolt

243345

39

Washer

774014

40

Lock Washer

257412

41

Hex Bolt

243331

42

Hitch Pin

260400

43

O-Ring

425514

44

Rocker Switch Box

833515

45

Switch Box Cover

833524

46

2 Position Rocker

184177

47

Round Base Magnet

102505

48

Truss Whiz Bolt

253170

49

Whiz Nut

253025

50

Grommet

424216

51

Flex Guard Loom

422275

-

12V DC Relay

184272

-

Reel Tie

423148

52

Lift Rocker Switch Decal

162199

53

Disk Fender

723231

54

Truss Whiz Bolt

253177

55

Disk Offset Plate

755147

56

Clevis Mount Edger with Electric Lift

533128
