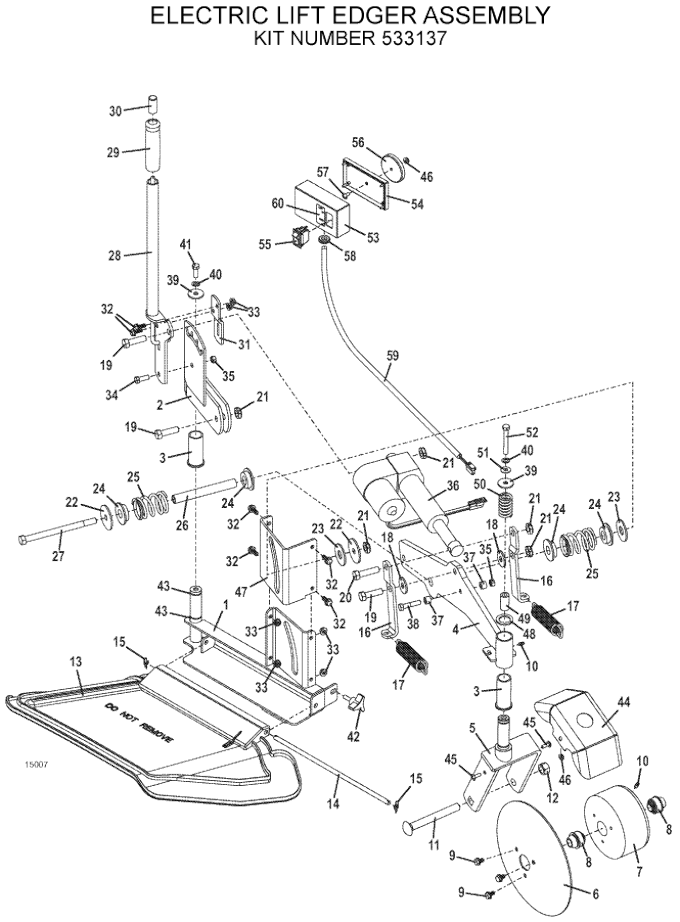

Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
Item #
Description
Part Number
1
Discharge with Edger Mount
644598
2
Edger Height Adjustment Pivot
824604
3
Flanged Sintered Bushing
833260
4
Edger Disk Pivot Arm
824603
5
Right Edger Fork Assembly
604351
-
O-Ring
425514
6
Edger Disk
824149
7
Edger Hub
783900
8
Wheel Ball Bearingl
120048
9
Whiz Bolt
253189
10
Grease Zerk Fitting
280776
11
Carriage Bolt
247715
12
Lock Nut
253970
13
Flex Discharge Shield
422042
14
Flex Dischage Shield Pin
780650
15
Cotter Ring
260608
16
Edger Spring Bracket
732969
17
Extension Spring
283848
18
Nylon Washer
821516
19
Hex Bolt
243575
20
243580
21
Nylon Insert Nut
253470
22
Washer
257061
23
821520
24
Spring Guide
885005
25
Compression Spring
283517
26
Slider Tube
942177
27
243650
28
Disk Lift Lever
643680
29
Thumb Release Handle Grip
833540
30
Thumb Button Push Rod
821675
31
Lever Guide
732593
32
Hex Flanged Whiz Bolt
253192
33
Whiz Nut
253035
34
243330
35
253890
36
Actuator
180024
37
Spacer
902280
38
243345
39
774014
40
Lock Washer
257412
41
243331
42
Heavy Duty 3 Prong Deck Stud
252821
43
44
Disk Fender
723231
45
Truss Whiz Bolt
253177
46
253025
47
Disk Offset Plate
755147
48
257107
49
Pivot Shaft Bearing
881105
50
283389
51
257030
52
243362
53
Rocker Switch Box
833515
54
Switch Box Cover
833524
55
2 Position Rocker Switch
184177
56
Round Base Magnet
102505
57
253176
58
Grommet
424216
59
Flex Guard Loom
422275
12V DC Relay
184272
Reel Tie
423148
60
Lift Rocker Switch Decal
162199
