Model 15B Hopper

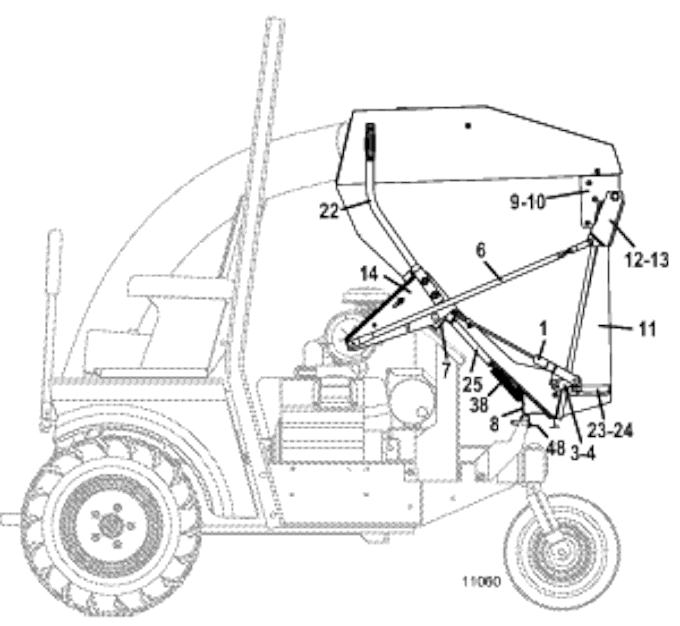

Model 15B Hopper Assembly - Side View
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Linkage Latch Rod |
643722 |
3 |
Right Door Latch |
644155 |
4 |
Left Door Latch |
644156 |
6 |
Door Linkage Mod 16 |
644458 |
7 |
Upper Crossmember 15B |
645011 |
8 |
Lower Channel Mount 15B |
645203 |
9 |
Right Hinge Mount |
645260 |
10 |
Left Hinge Mount |
645261 |
11 |
Hopper Door 15B |
645285 |
12 |
Right Door Hinge |
645410 |
13 |
Left Door Hinge |
645411 |
14 |
Door Mount 15B |
645571 |
22 |
Hopper Handle LA |
734075 |
23 |
Right Door Latch Bracket Model 15 |
754351 |
24 |
Left Door Latch Bracket Model 15 |
754352 |
25 |
Spring Strap 700/900 |
755129 |
38 |
Extension Spring |
283821 |
48 |
Hitch Pin |
260400 |
49 |
15B Collector Assembly W/O Mount |
503190 |
