Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 16FM Grasscatcher Collector Assembly

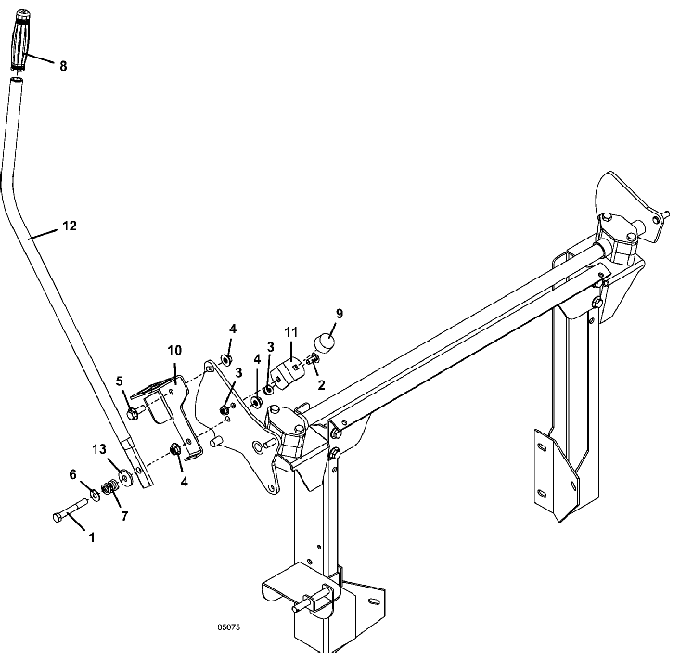

Model 16FM 2 Stage Lever Style

2 Stage Lever Style

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

12HT Bagger Frame

645374

2

Right Top Guard Strap

732623

3

Left Top Guard Strap

732624

4

Bagger Top Support Gusset

766042

5

Top Prop Bracket

754327

6

12HT Collector Top

645835

7

Fabric Screen

420008

-

Metal Screen

721389

8

Fabric Screen Side Strap

782305

9

Fabric Screen Front Strap

782311

10

Fabric Screen Rear Strap

782361

11

Inlet Deflector

721334

12

Inlet Tube W/A

645186

13

57" Flex Hose

424408

14

6" Hose Clamp

280345

15

Hard Top Prop

754101

16

Clevis Pin

261279

17

Washer

257020

18

Torsion Spring

284407

19

Cotter Ring

260606

20

Flexible Draw Latch

281304

21

Bag Rod

645723

22

White 3 Bushel Hard Bottom Bag

420004

-

Black Hard Bottom Vac Bag

420019

23

Carriage Bolt

247253

24

Nylon Washer

257047

25

Nylon Insert Nut

253460

26

Truss Whiz Bolt

253177

27

Truss Whiz Bolt

253176

28

Whiz Nut

253025

29

Hex Whiz Bolt

253173

30

Nylon Insert Nut

253440

31

12 HT Collector (Not Pictured)

504193
