Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 16FM Grasscatcher Collector Assembly

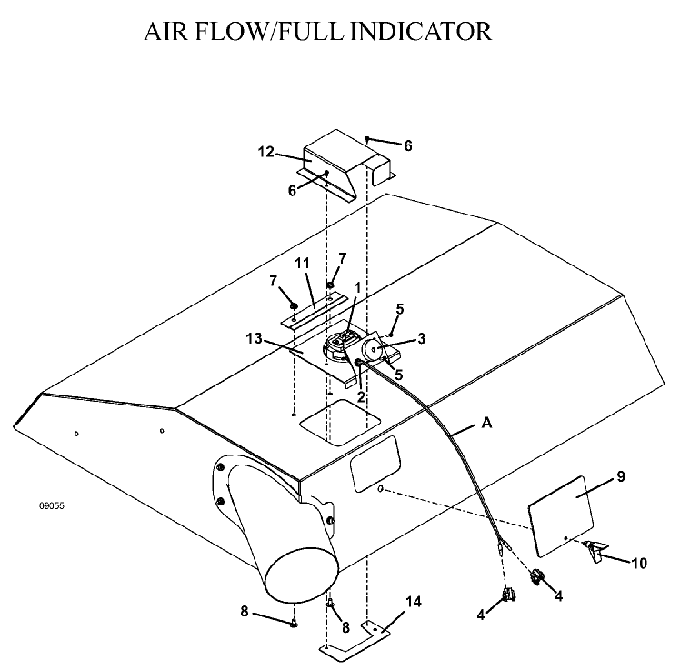

Model 16FM Airflow / Full Indicator

Airflow Full Indicator

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Full Signal Air Switch

143329

2

Clamp Cord

181235

3

Piezo Siren

182459

4

Tap In Connector Assembly

184375

5

Machine Screw

250163

6

#8 Screw

252040

7

Whiz Nut

253025

8

Truss Whiz Bolt

253176

9

Inspection Window

423503

10

Swell Latch Assembly

604805

11

Window Clip

720146

12

Full Signal Cover

721092

13

Model 16 Indicator Mount

722905

14

Model 16 Indicator Clamp

722008

Return to Model 16FM Hopper Index Return to Top
