Genuine OEM Grasshopper® Mower Parts Diagrams
Model 16FM Grasscatcher Collector Assembly

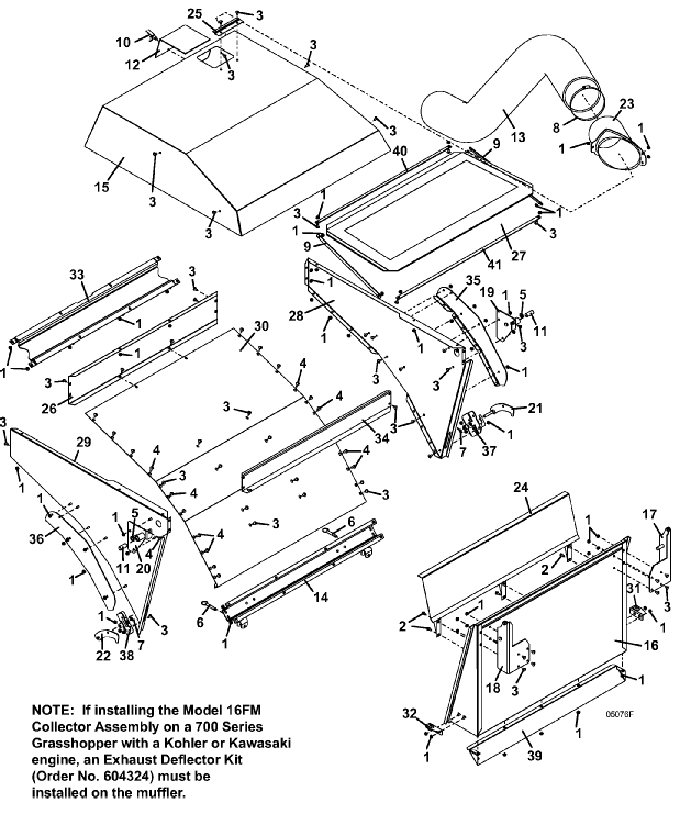

Model 16FM Collector Assembly with Mount
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Whiz Nut |
253025 |
2 |
Hex Whiz Bolt |
253173 |
3 |
Truss Whiz Bolt |
253176 |
4 |
Truss Whiz Bolt |
253177 |
5 |
Washer |
257063 |
6 |
Hitch Pin |
260400 |
7 |
Cotter Ring |
260608 |
8 |
6" Hose Clamp |
280345 |
9 |
Model 16 Fabric Mount Strap |
782329 |
10 |
Swell Latch Assembly |
604805 |
11 |
Nylon Bearing |
422615 |
12 |
Inspection Window |
423510 |
13 |
62" Flex Hose |
424410 |
14 |
Model 16 Lower Crossmember |
643159 |
15 |
16FM Fabric Screen Hopper Top |
643859 |
- |
16FM Top Assembly with Fabric Screen |
603546 |
16 |
Model 16FM Hopper Door |
644321 |
17 |
Right Hopper Auto Dump Hinge |
644332 |
18 |
Left Hopper Auto Dump Hinge |
644333 |
19 |
Right Hinge Mount for Model 16FM |
644365 |
20 |
Left Hinge Mount for Model 16FM |
644366 |
21 |
Right Door Latch for Model 16FM |
644370 |
22 |
Left Door Latch for Model 16FM |
644371 |
23 |
Model 16 Inlet Tube |
644372 |
24 |
Model 16 Door Screen |
644400 |
25 |
Window Clip |
720145 |
26 |
Front Panel for Model 16FM |
721301 |
27 |
Fabric Screen for Model 16FM |
420010 |
- |
Removable Screen Panel for Model 16FM |
721425 |
28 |
Right Side Panel for Model 16FM |
721761 |
29 |
Left Side Panel for Model 16FM |
721762 |
30 |
Bottom Panel for Model 16FM |
721766 |
31 |
Right Door Latch Bracket for Model 16FM |
729351 |
32 |
Left Door Latch Bracket for Model 16FM |
729352 |
33 |
Center Crossmember for Model 16 |
643214 |
34 |
Rear Panel for Model 16 |
754199 |
35 |
Right Side Reinforcement for Model 16FM |
754248 |
36 |
Left Reinforment for Model 16FM |
754249 |
37 |
Right Latch Plate |
754260 |
38 |
Left Latch Plate |
754261 |
39 |
Door Louver for Model 16FM |
721168 |
40 |
Front Fabric Strap for Model 16FM |
782346 |
41 |
Rear Fabric Strap for Model 16FM |
782347 |
42 |
Model 16FM Collector Assembly with Mount |
503194 |
