Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 35 /41 Vacuum & Hopper

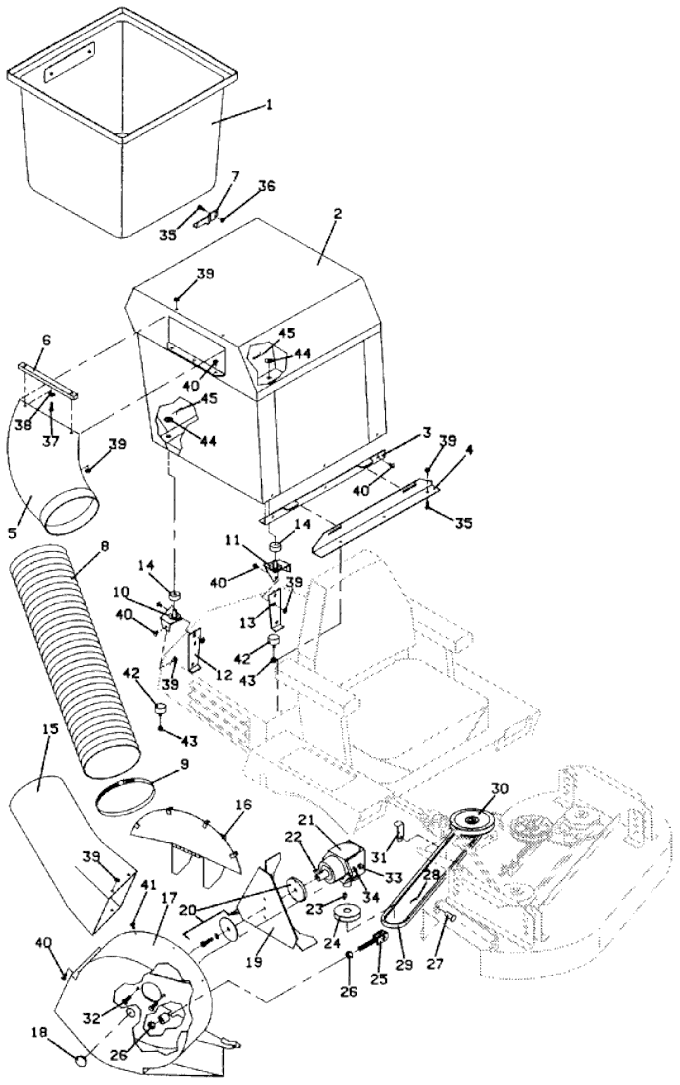

Model 35 /41 Vacuum & Hopper Assembly

model 35-41 vacuum and hopper assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Grass Container Assembly

603242

2

400 Vac Hopper Housing

643445

3

Grasscatcher Upper Front Mount

729278

4

Grasscatcher Lower Front Mount

729305

5

Vacuum Hose Inlet Adapter

821005

6

Battery Hold Down

822410

7

Grasscatcher Latch

729040

8

34" Flex Hose

424390

9

6" Hose Clamp

280345

10

Hopper Right Rear Mount

643613

-

411R Right Rear Mount

643124

11

Hopper Left Rear Mount

643614

-

411R Left Rear Mount

643125

12

411 Right Hood Reinforcement

729038

-

411R Right Hood Reinforcement

724133

13

411 Left Hood Reinforcement

729039

-

411R Left Hood Reinforcement

724134

14

Step Bushing

257037

15

400 Vac Hose Adapter

422019

16

400 Vac Side Plate

643758

17

411 Vac Housing

643403

18

1" Plastic Hole Plug

422075

19

241 Vac Fan

643330

20

Blade Adapter Assembly

388900

21

Right Angle CounterClockWise (CCW) Gearbox

390021

22

Woodruff Key

281828

23

Woodruff Key

281833

24

Sheave

415815

25

Housing Mount Yoke

643960

26

Nut

254470

27

Clevis Pin

261424

28

Hair Pin

260525

29

Belt (for 35" decks)

382775

-

Belt (for 41" decks)

382825

30

Sheave

416119

31

400 Deck Belt Retainer

722025

32

Hex Bolt

243330

33

Nut

254450

34

Lock Washer

257412

35

Hex Whiz Bolt

253175

36

Nylon Insert Nut

253440

37

Hex Bolt

243025

38

Washer

257020

39

Whiz Nut

253025

40

Truss Whiz Bolt

253176

41

Hex Whiz Bolt

253173

42

Rubber Bumper

424052

43

Whiz Nut

253035

44

Washer

257040

45

Hair Pin

260523
