Genuine OEM Grasshopper® Mower Parts Diagrams

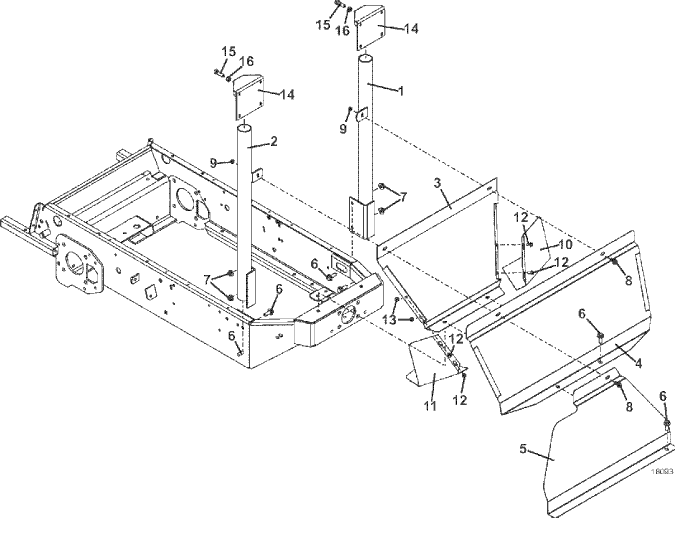

Model 12HT Triple Bag Mount Kit
600 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
600T Model 7F Right Frame Support |
643884 |
2 |
600T Model 7F Left Frame Support |
643885 |
3 |
Dual Bag Heat Shield |
723289 |
4 |
600 8/12F Bag Shield |
722552 |
5 |
600 3 Bag Extension Shield |
722557 |
6 |
Flanged Whiz Bolt |
253203 |
7 |
Whiz Nut |
253043 |
8 |
Hex Flange Whiz Bolt |
253192 |
9 |
Whiz Nut |
253035 |
10 |
618 / 620T Right Exhaust Deflector |
722398 |
11 |
618 / 620T Left Exhaust Deflector |
722399 |
12 |
Hex Whiz Bolt |
253173 |
13 |
Whiz Nut |
253025 |
14 |
Grasscatcher Top Bracket |
643115 |
15 |
Hex Bolt |
243335 |
16 |
Nut |
254450 |
