Genuine OEM Grasshopper® Mower Parts Diagrams

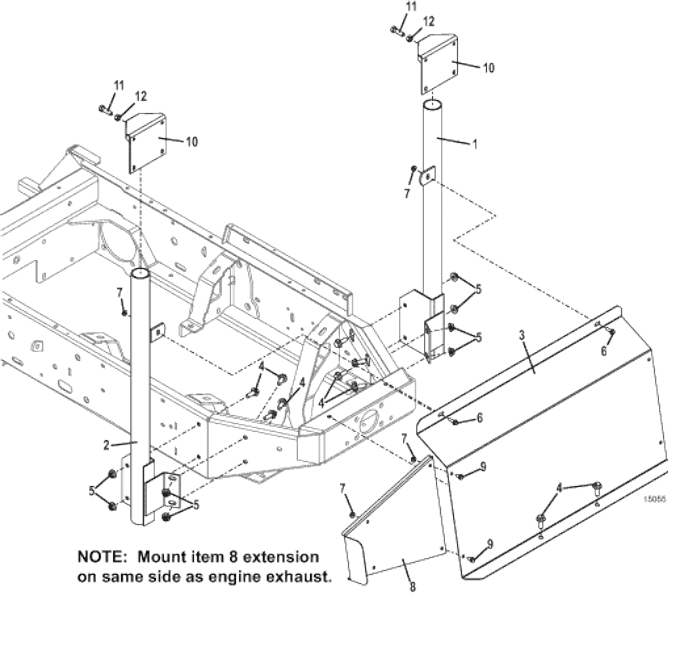

Model 12HT Triple Bag Mount Kit
700 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
700 Series Right Bag Mount Support |
643854 |
2 |
700 Series Left Bag Mount Support |
643855 |
3 |
700 Series Bag Shield |
723373 |
4 |
Flanged Whiz Bolt |
253203 |
5 |
Whiz Nut |
253043 |
6 |
Hex Whiz Bolt |
253175 |
7 |
Whiz Nut |
253025 |
8 |
700 Series Bag Shield Extension |
723052 |
9 |
Hex Whiz Bolt |
253173 |
10 |
Grasscatcher Top Bracket |
643115 |
11 |
Hex Bolt |
243335 |
12 |
Nut |
254450 |
13 |
700 Series Vacuum 3 Bag Mount Kit |
503587 |
