Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

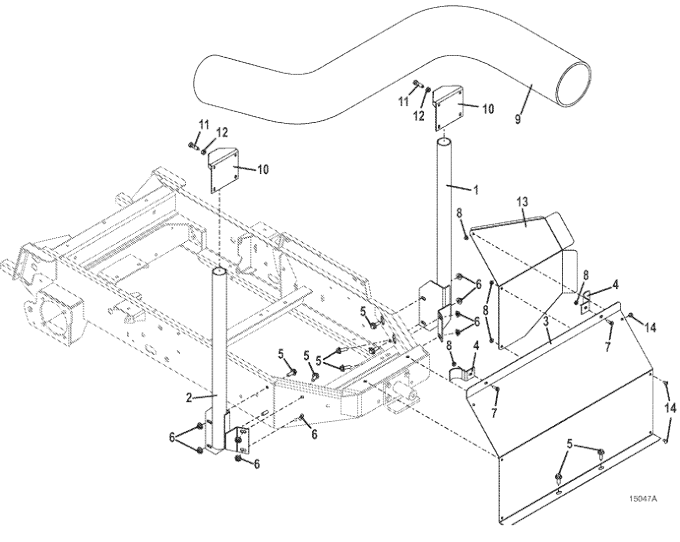

Model 12HT Vacuum Bag Mount Kit

900 Series

900 Series Vacuum Bag Mount Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

7F Right Offset Pipe Mount

643692

2

7F Left Offset Pipe Mount

643693

3

900 Series Bag Shield

723304

4

Bag Shield Clamp

732335

5

Flanged Whiz Bolt

253203

6

Whiz Nut

253043

7

Hex Whiz Bolt

253175

8

Whiz Nut

253025

9

72" Flex Hose

424412

10

Grasscatcher Top Bracket

643115

11

Hex Bolt

243335

12

Nut

254450

13

900 Series Bag Shield Extension

723317

14

Truss Whiz Bolt

253176
