Genuine OEM Grasshopper® Mower Parts Diagrams

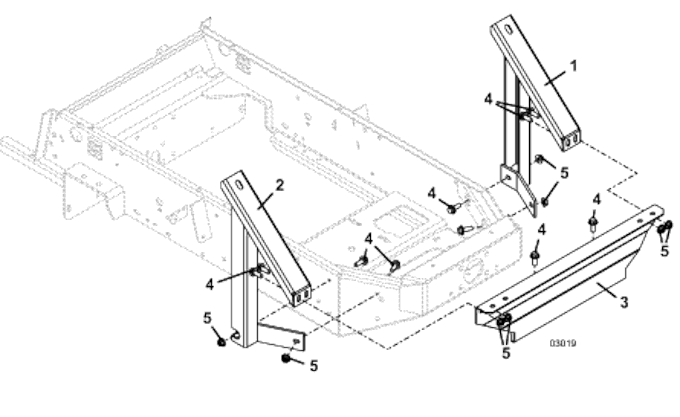

Model 15 Lever Action Mount Kit
600 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
600 Model 15 Right Upright |
644791 |
- |
600T Model 15 Right Upright |
644732 |
2 |
600 Model 15 Left Upright |
644790 |
- |
600T Model 7F Left Frame Support |
644733 |
3 |
Cross Member |
729692 |
- |
600T Model 15 Cross Member |
729636 |
4 |
Flanged Whiz Bolt |
253203 |
5 |
Whiz Nut |
253043 |
6 |
618 Model 15 Hopper Mount Kit |
503542 |
7 |
620T Model 15 Hopper Mount Kit |
503543 |
