Genuine OEM Grasshopper® Mower Parts Diagrams

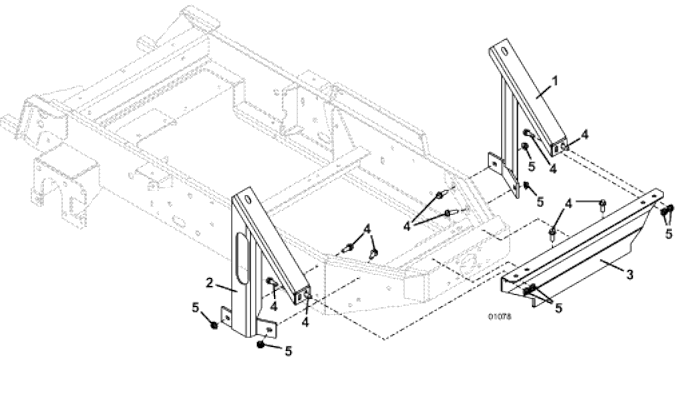

Model 15 Lever Action Mount Kit
700 / 900 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
700 Series Right Hopper Mount |
643601 |
2 |
700 Series Left Hopper Mount |
643602 |
3 |
Cross Member |
729692 |
4 |
Flanged Whiz Bolt |
253203 |
5 |
Whiz Nut |
253043 |
6 |
700 Series Vacuum Hopper Mount Kit |
503581 |
