Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 15B HL Mount Kit

High Lift

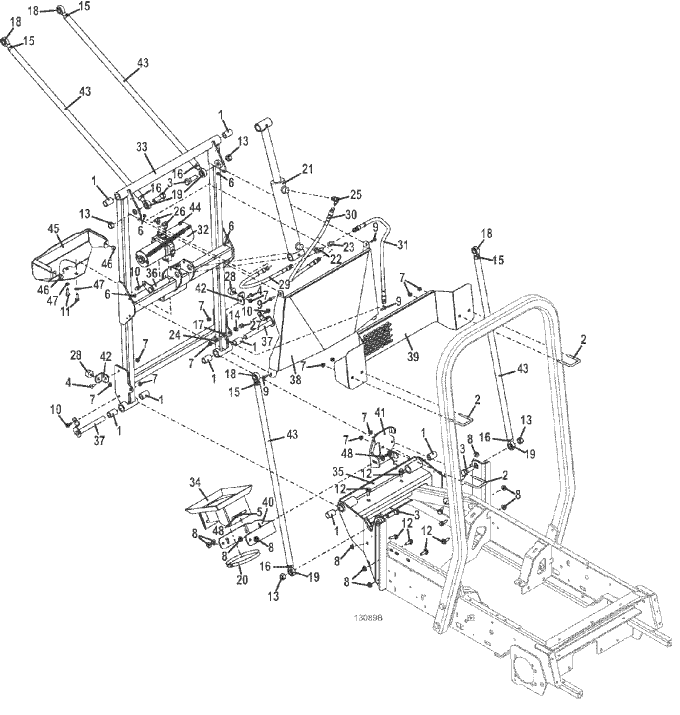

Model 15B High Lift Mount Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Oilite Bearing

121766

2

Square U-Bolt

240278

3

Hex Bolt

243810

4

Carriage Bolt

247130

5

Carriage Bolt

247253

6

Whiz Nut

253025

7

Whiz Nut

253035

8

Whiz Nut

253043

9

Hex Whiz Bolt

253175

10

Flanged Hex Whiz Bolt

253192

11

Hex Bolt

243330

12

Flanged Whiz Bolt

253203

13

Lock Nut

253970

14

Nut

254462

15

Nut

254493

16

Left Handed Jam Nut

254496

17

Washer

257040

18

Rod End

265665

19

Rod End

265666

20

6" Hose Clamp

280345

21

Hydraulic Cylinder

290030

22

T Branch Adapter

360006

23

Adapter

360011

24

Adapter

360024

25

O-Ring Adapter

360048

26

O-Ring Adapter

360049

27

Female Cap

360516

28

Bumper with Stud

424056

29

Hose Assembly

424308

30

Hose Assembly

424548

31

Hose Assembly

424551

32

Horizontal Hydraulic Pump Assembly

604428

33

Lower Arm

645012

34

Lower Hose Coupler Bracket

645108

35

Mount

645548

36

Pin

645680

37

Pin

645681

38

Shield

722356

-

Medium Grasshopper Emblem Decal

163294

39

Shield

722357

40

Hose Coupler Pivot Bracket

725694

41

Hose Coupler Mount Bracket

726313

42

Hopper Lever Stop

732592

43

Rod

882036

44

Vent Plug

365505

-

Plug

365502

45

Hydraulic Pump Shield

729744

46

Rubber Bumper

424015

47

Lock Washer

257412

48

Washer

257062

49

Model 15B High Lift Mount Kit for 700 / 900 Series

503555
